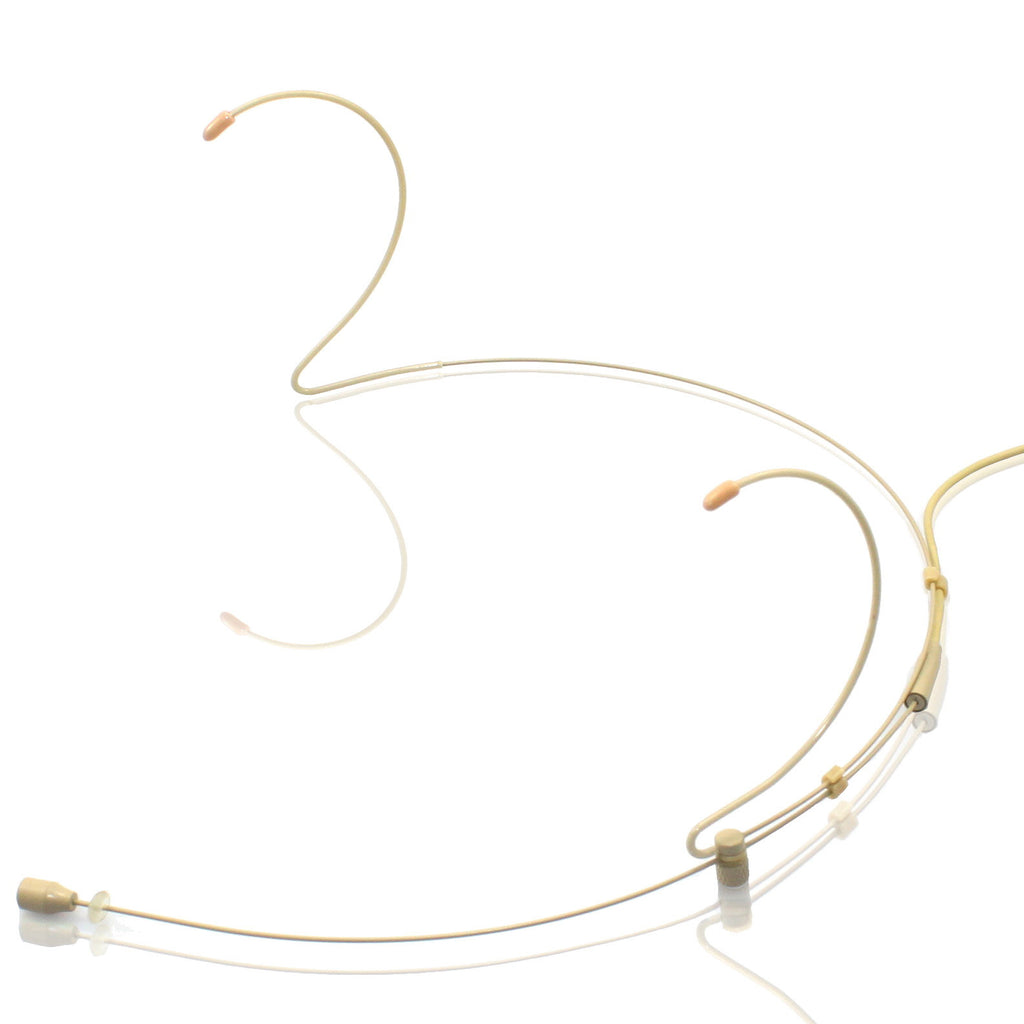

YPA MM1 Lite Omni-directional Headset Microphone For Wireless Bodypack Transmitter Mic System

$39.99 $49.99

  • The MM1 Lite Headset is the low-profile headset microphone. Combining the transparent sound quality and 2nd Generation capsule design of the ME2 Earset with a comfortable, lightweight, and easily adjustable microphone boom, the MM1 Headset is perfect for houses of worship, theaters, broadcasters, and presenters.

    The MM1 Lite Headset is supplied with:

    • Fixed Headframe
    • cable clip
    • Windscreen

    Really small

    With a diameter of only 0.16” (4 mm) — the size of a Match — the mic capsule is really small when worn.

    Rugged cable

    Aramid strength members and engineered alloys ensure that our cables provide extreme tensile and flex strength.

    True colors

    Our colors are precision-matched to theatre makeup shades to blend with a wide range of skin tones and clothing.

  • FEATURES AT A GLANCE

    • Slim, lightweight and professional bodypack microphone
    • High class back electret condenser microphone
    • Silicone padding at the earpiece, resistant to makeup, sweat and moisture
    • High quality microphone capsule with omni-directional polar pattern
    • For vocal, speech, dance and sport applications, for instrumental artists and solo entertainers
    • With windscreen & cable clip

    Microphone and Performance

    • Frequency Response: Omnidirectional: 20 Hz to 20 kHz
    • Sensitivity: Omnidirectional: -42dB±3dB
    • Overload Sound Level: Omnidirectional W6: 131 dBA SPL
    • Output Impedance: 1000Ω ±30%(at 1KHz)
    • Operating Current: 500 uA
    • Operating Voltage: 1.5 to 12 Volts
    • Power Supply Voltage: +5V with 10 kOhm load

    Specifications

    • Capsule Dimension(mm): Ø 0.16” (4 mm)
    • Weight: 0.2 oz (6 g)
    • Cable Length: 5 Feet (1.4 m)
  • MM1 FEATURES COMPARISON
    YPA Microphone MM1 Lite
    MM1 Lite
    YPA Microphone MM1
    MM1
    Price
    $49.99
    $59.99
    2nd Generation Capsule
    Connector Type Fixed Fixed
    Microphone Boom Adjustable
    Headframe Adjustable
    Cable Clip 1 pcs 1 pcs
    Windshields 1 pcs 2 pcs
    Warranty 12 months 18 months
  • The Below Link is Product Review

    YPA omnidirectional headset microphone review

    Download original files

      Description Quality Comments
    Download YPA omnidirectional headset microphone 48,000 Hz; 24-bit; mono USBPre; in a quiet room, signal at around -12 dBFS
    Download YPA omnidirectional headset microphone with Shure MX1BP power module 48,000 Hz; 24-bit; mono USBPre; in a quiet room, signal at around -12 dBFS
    Download YPA omnidirectional headset microphone 48,000 Hz; 24-bit; mono Fostex FR-2LE in a quiet room, signal at around -12 dBFS
  • Microphone Wiring

    Brand Code    Model Connector
    SHURE/JTS/Carvin/Trantec/TOA/Line 6 C4S SHURE All with TA4F (Tiny QG) Connector, including UC1, BLX1, FP1, GLXD1, PG1, PGX1, PGXD1, SLX1, ULX1, ULXD1, UR1, UR1M, JTS All with TA4F connector, Carvin UX16-BP, Trantec S5, TOA WM-4300, Line 6 TBP12: XD-V55, XD-V70, XD-V75, Relay G50, Relay G55, Relay G90, TA4F
    SENNHEISER/Audio 2000's C4SE SENNHEISERE volution Series, EW100, EW300, EW500, G2, G3, SK 1093, SK 20, Audio 2000's AWX6030M 3.5mm locking plug
    AKG C4A DPT700, PT40, PT45, PT60, PT61, PT80, PT81, PT400, PT450, PT2000, PT4000, PT4500 TA3F
    Audio Technica C4T T35, T75, T211, T601, T701, T1000a, T1001, 1000 Series, 1200 Series, 4000 Series, 5000 Series, 7000 Series,T27, T31, T51, T200, T201, T210, T210a, T300, T310, T310b, 1100 Series, 1400 Series, 2000 Series, 3000 Series, T1801, T801, Hirose Type 4-pin
    Lectrosonics C4L SM Series, UM Series, LM Series TA5F
    Samson C4SA TX3 (Black), UT5, UT6 Hirose 6 pin
    Mipro/Fitness Audio/Chiayo/Beyer/Peavey C4MI Mipro ACT-707-TS (TE), ACT-801 TS (TE), ACT-8Ta, ACT-80T, MT103, MT303, MT801, MT808, ACT-30T, ACT-50T, ACT-7T(A) Beyer Opus Series, TS-100, TS-300, TS-500, TS-800 Peavey PCX-V12-B, PCX-U302-B TA4F
