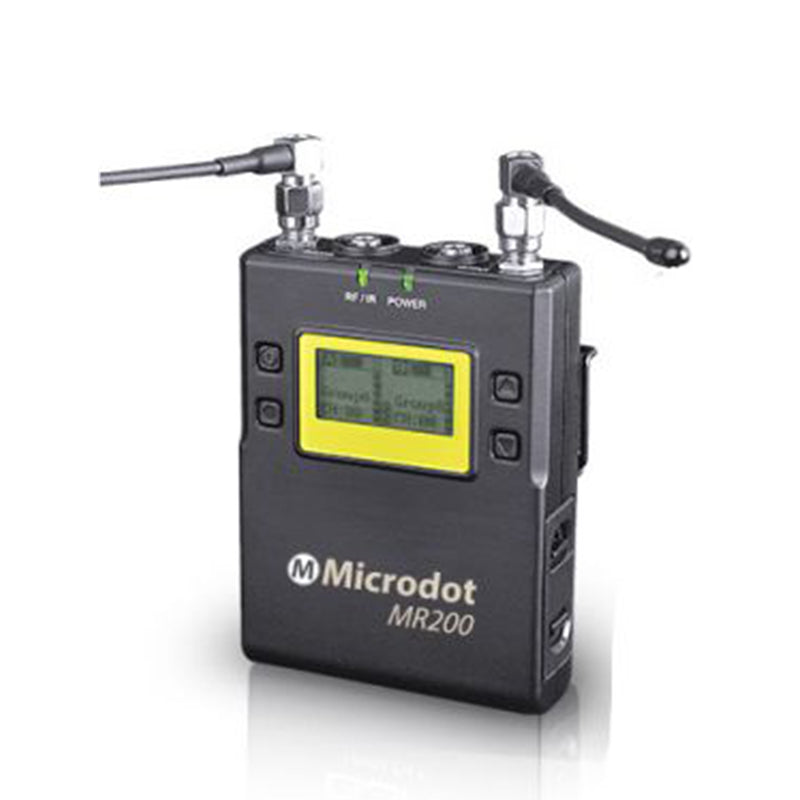

MICRODOT MR200 2-Channel Portable Receiver for M200 Systems

  • Sale
  • $158.00
  • Regular price $240.00

  • Receiver (x1)

    The MICRODOT MR200 is a camera-mountable integrated wireless receiver. It features a wide switching RF bandwidth, an easy-to-read LCD display and infrared synchronization between transmitter and receiver.

    Equipped with an auto-scan function, the MR200 can automatically search for an available transmission frequency. The headphone jack enables real-time monitoring or the receiver via headphones, especially useful for cameras that lack a monitor output.

    Additional Features

    Over 330-feet (100m) in open areas or 200-feet (60m) with obstacles
    Reliable, broadcast-quality audio
    Two transmitters could work simultaneously
    96 selectable channels in 2 groups
    Headphone monitoring
    Easy-to-read LCD displays

    M200 Frequency Band

    638.000 MHz to 667.700 MHz (Group A)
    668.000 MHz to 697.700 MHz (Group B))

    Body-pack receiver (MR200)

    This receiver employs a true diversity method featuring little signal dropout and an angle-adjustable antenna. It comes with an adapter for mounting on a compact camcorder (HXR-NX3, etc.). It also features a Clear Channel Scan function to search for available channels.


  • MR200 Receiver

     Channels:  96
     Groups:  A or B
     Oscillator Type:  PLL Synthesizer
     Audio output connector:  3.5mm mini jack
     Antenna:  1/4λ wire antenna
     Audio output level:  -60dBV
     Headphone output level:  30mW (16Ω)
     Receiver frequencies:  638.000 MHz to 667.700 MHz (Group A)
     668.000 MHz to 697.700 MHz (Group B)
     Signal to Noise Ratio:  70 dB or more
     Voice Delay:  12 ms
     Reference Deviation:  +/- 5 kHz (-60dBV, 1kHz input)
     Frequency response:  40Hz to 18kHz (+/-3dB)
     Distortion:  0.5% or less
     Spur Suppression:  -60 dB
     Weight:  135g
     Battery:  Two AA size batteries
     Dimensions:  85 x 62 x 23 mm
     Operating temperature:  0℃ to 50℃
     Storage temperature:  -20℃ to +55℃


  • In original box

    1x MR200 Bodypack Receiver


  • Download User Manual

    Download the M200 User Manual in PDF format ( 350 KB PDF file)
