MICRODOT M200 2-Person Camera-Mount Wireless Omni Lavalier Microphone System

  • Sale
  • $248.00
  • Regular price $500.00


  • The MICRODOT UHF Wireless Lavalier Microphone System provides stable, interference free audio in portable, compact and low cost package. M200 MR200+MT200+MT200 could support two transmitters and one receiver working simultaneously. It is a perfect fit for DSLR videography, field recording and interviews, broadcast TV, ENG, providing dependable audio broadcasting and recording.

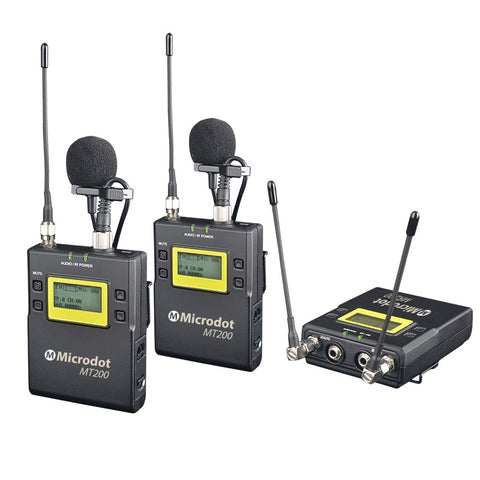

    The system includes a camera-mountable wireless receiver, two wireless body-pack transmitters and clip-on lavalier mics.

    Receiver (x1)

    The MICRODOT MR200 is a camera-mountable integrated wireless receiver. It features a wide switching RF bandwidth, an easy-to-read LCD display and infrared synchronization between transmitter and receiver.

    Equipped with an auto-scan function, the MR200 can automatically search for an available transmission frequency. The headphone jack enables real-time monitoring or the receiver via headphones, especially useful for cameras that lack a monitor output.

    Transmitter (x2)

    This compact transmitter MT200 employs a crystal-controlled PLL synthesizer. It is equipped with a muting function and a BMP-type mic input. The RF power output can be switched among high, middle and low.

    Additional Features

    Over 330-feet (100m) in open areas or 200-feet (60m) with obstacles
    Reliable, broadcast-quality audio
    Two transmitters could work simultaneously
    96 selectable channels in 2 groups
    Headphone monitoring
    Easy-to-read LCD displays

    M200 Frequency Band

    638.000 MHz to 667.700 MHz (Group A)
    668.000 MHz to 697.700 MHz (Group B))

    Body-pack transmitter (MT200)

    This transmitter is a lightweight, compact transmitter that employs a crystal-controlled PLL synthesizer. It is equipped with a muting function and a BMP- typemicrophone input connector. The RF power output can be switched. It is also equipped with a MIC/LINE input switching function to support a variety of input levels.

    Body-pack receiver (MR200)

    This receiver employs a true diversity method featuring little signal dropout and an angle-adjustable antenna. It comes with an adapter for mounting on a compact camcorder (HXR-NX3, etc.). It also features a Clear Channel Scan function to search for available channels.



  • MT200 Transmitter

     Channels:  96
     Groups:  A or B
     Oscillator Type:  PLL Synthesizer
     Frequency Range:  638.000 MHz to 667.700 MHz (Group A)
     668.000 MHz to 697.700 MHz (Group B)
     Reference Deviation:  +/- 5 kHz (-60dBV, 1kHz input)
     Signal to Noise Ratio:  70 dB or more
     Spur Suppression:  -60 dB
     Voice Delay:  12 ms
     Antenna:  1/4λ wire antenna
    Audio input connector: 3.5mm mini jack
    Reference audio input level:  -60dBV (MIC input, 0dB attenuation)
    Distortion:  0.5% or less
    Weight: Approx. 120g
    Battery: Two AA size batteries
    Dimensions: 85 x 62 x 23 mm
    Operating temperature: 0℃ to 50℃
    Storage temperature: -20℃ to +55℃

    MR200 Receiver

     Channels:  96
     Groups:  A or B
     Oscillator Type:  PLL Synthesizer
     Audio output connector:  3.5mm mini jack
     Antenna:  1/4λ wire antenna
     Audio output level:  -60dBV
     Headphone output level:  30mW (16Ω)
     Receiver frequencies:  638.000 MHz to 667.700 MHz (Group A)
     668.000 MHz to 697.700 MHz (Group B)
     Signal to Noise Ratio:  70 dB or more
     Voice Delay:  12 ms
     Reference Deviation:  +/- 5 kHz (-60dBV, 1kHz input)
     Frequency response:  40Hz to 18kHz (+/-3dB)
     Distortion:  0.5% or less
     Spur Suppression:  -60 dB
     Weight:  135g
     Battery:  Two AA size batteries
     Dimensions:  85 x 62 x 23 mm
     Operating temperature:  0℃ to 50℃
     Storage temperature:  -20℃ to +55℃

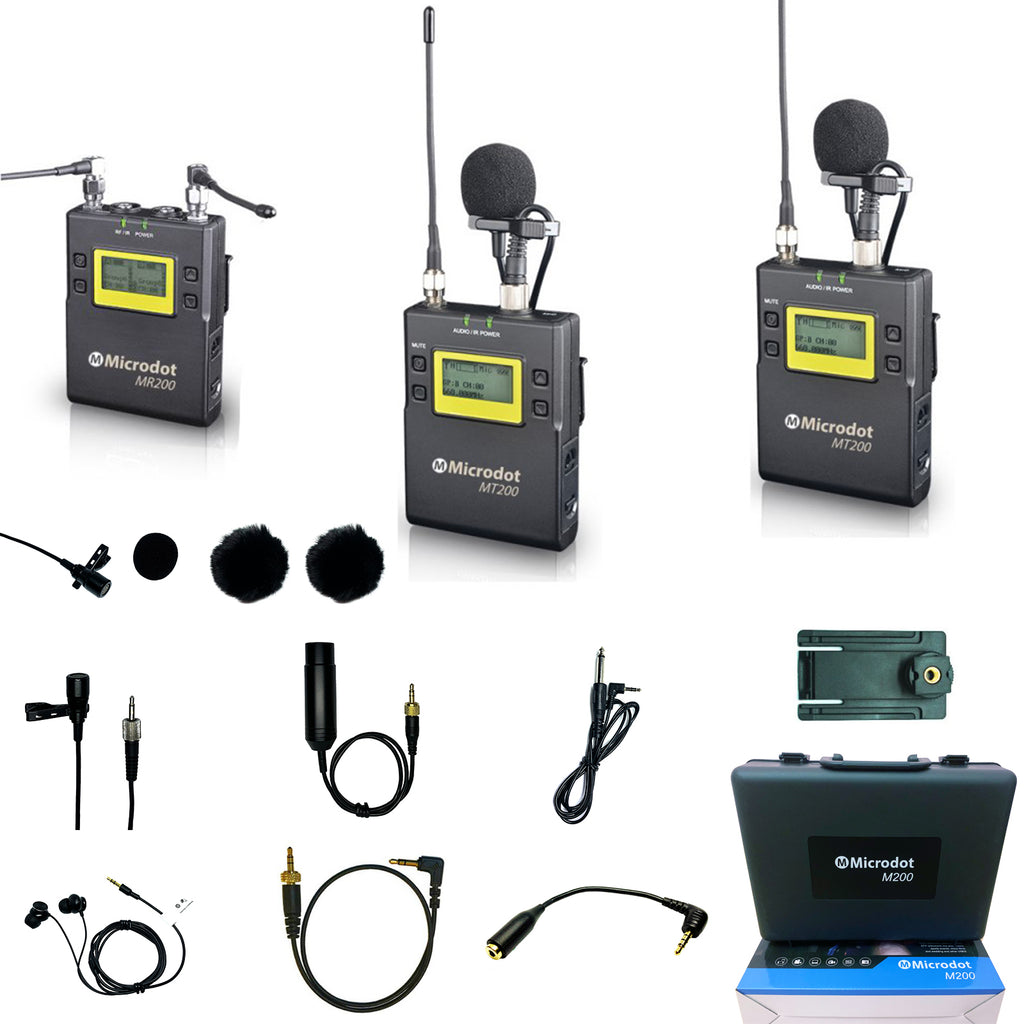

  • In original box

    2x MT200 Bodypack Transmitter
    1x MR200 Bodypack Receiver
    2x Uni-directional lavalier microphone
    2x Windbuster
    1x Earphone
    1x Mount adapter
    1x 3.5mm - 3.5mm jack plug cable
    1x 3.5mm - 6.3mm jack plug cable
    1x XLR - 3.5mm plug cable
    3.5mm TRRS-3.5mm TRS socket conversion cable
    1x Carry case



  • Download User Manual

    Download the M200 User Manual in PDF format ( 350 KB PDF file)
