YPA EM35S Wired Microphone Preamp Adapter for SONY Microphones (1/8" (3.5mm) mini to XLR)

  • Sale
  • $48.00
  • Regular price $78.00

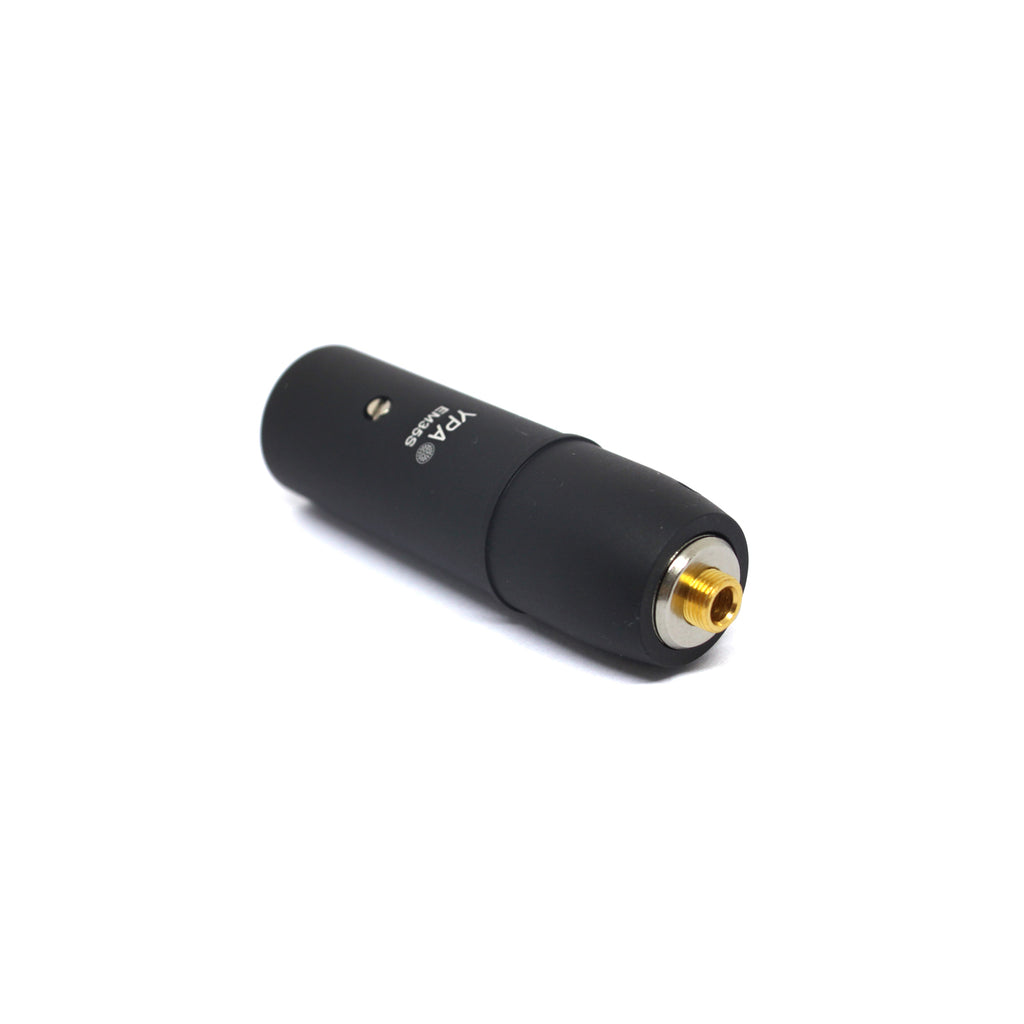

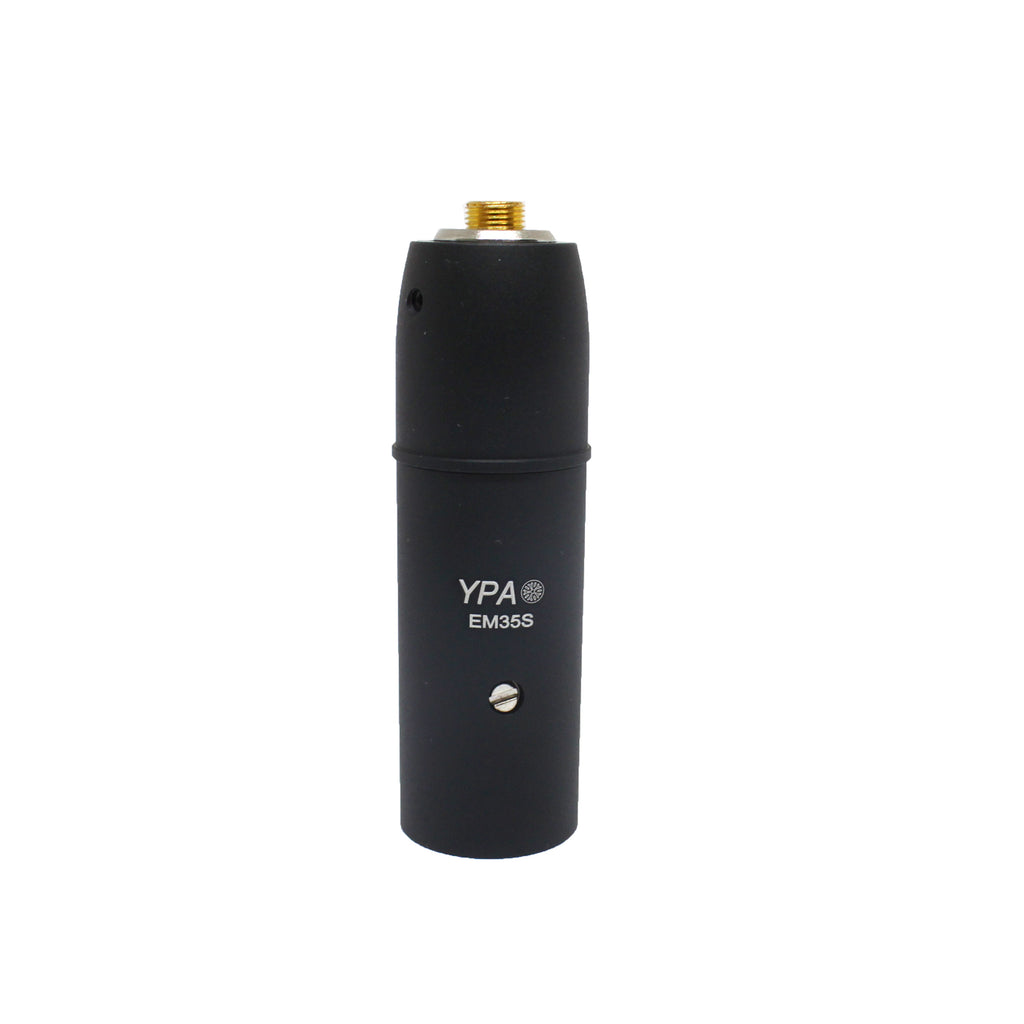

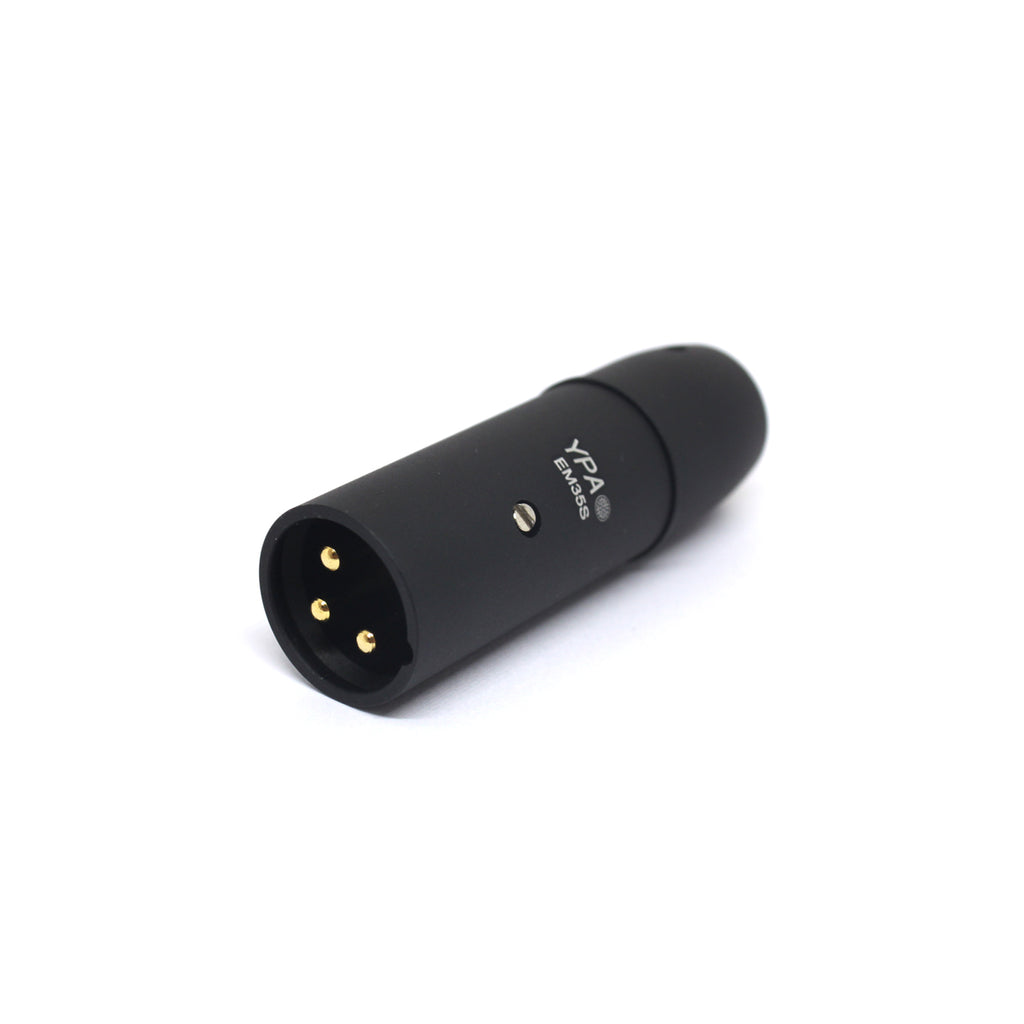

  • The EM35S Electret Microphone Power Adapter from YPA Microphones allows hardwired use of a lavalier mic by converting phantom 48V to 5.6V electret power, and outputs an electronically balanced signal with low impedance. This adapter is designed for use with SONY microphones and converts a 3.5mm plug to a standard 3-pin XLR male connector.

    A small widget that allows hardwired use of lavalier mikes.

    Electret converter PCB connector, 48 V Phantom power Voltage converter and balancing amp for operating electret microphones on 48 V Phantom powered inputs.

    It converts Phantom 48 V to 5.6 V electret power and outputs the signal electronically balanced with low impedance. A range of models is available with standard sockets to fit the plugs of most popular radiomike systems in 2 or 3 wired configuration.

    The connector is designed for connecting SONY microphones to XLR3M connections.

    3.5mm female socket to XLR3M Adapter for use with SONY's series of Miniature Microphones such as the ECMCS3, ECM44, ECMV1BMP, ECM-CS10, ECM-V1BMP, headsets, lavalier miniature.

    Converts SONY Headset, Earset & Lavalier Microphones To Mixer, PA, XLR socket and so on which offer 48V phantom power

  • Adapter Type Converts phantom 48 V to electret 5.6 V power
    Connectors 3.5MM to 3-pin XLR male
    Length 2.2" (58 mm) approx.
    Diameter Adapter: 0.75" (19 mm) approx.
    Weight 1.1 oz (32 g) approx.
  • in original box
    1* YPA EM35S adapter
    1* Protective nets
    1* Carry Case
    Limited 1-Year Warranty
