The 4016 Headset Condenser Microphone is perfect for presentation, fitness and vocal applications. This low profile, miniature condenser microphone provides accurate audio reproduction through its compact 4.0*1.5mm capsule. With microdot detachable cable, easily convert/replace your connectors. Manufactured with extreme care and the highest quality components, the 4016 delivers exceptionally clear, articulate sound with reliable performance in an extremely low profile design!

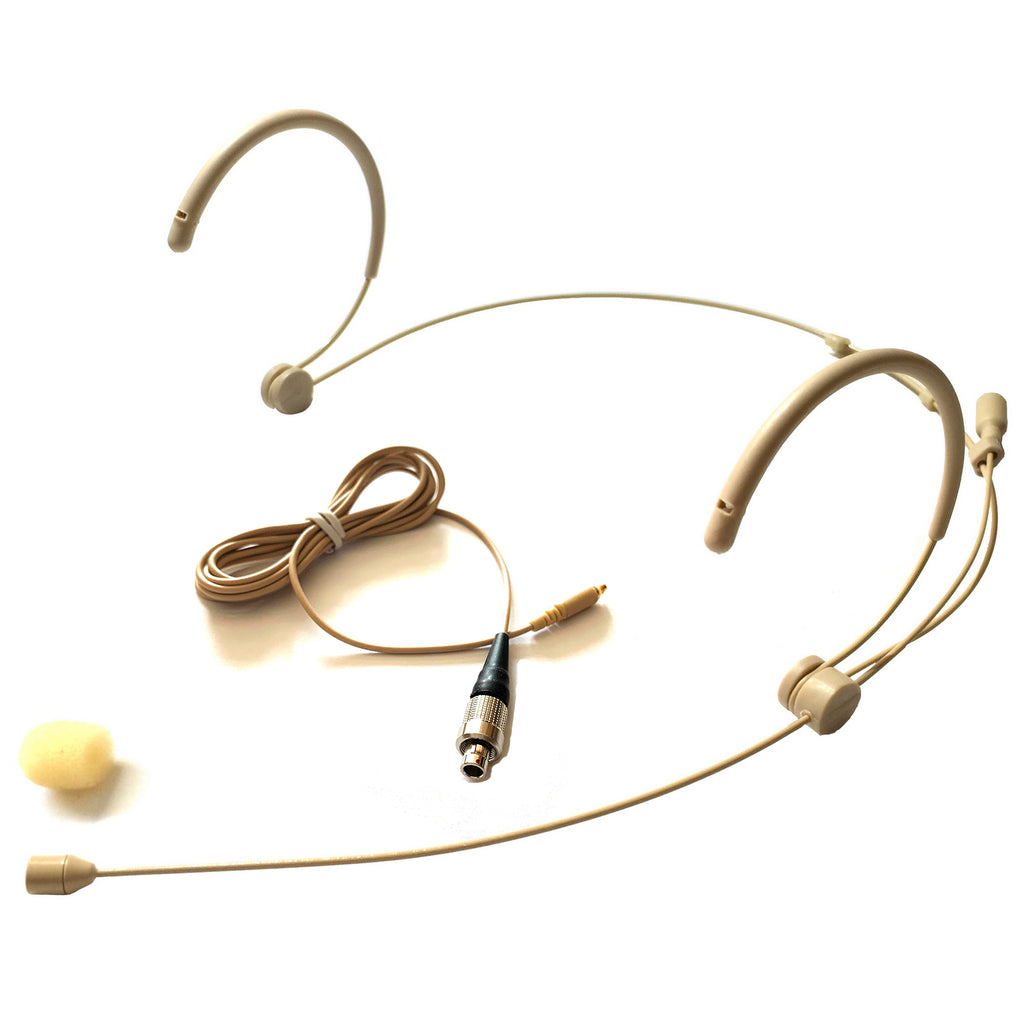

The 4016 Headset is supplied with:
-

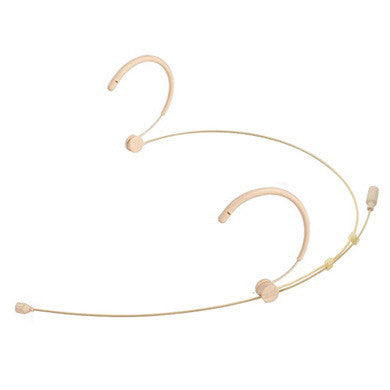

Fixed Headframe with Microphone
-

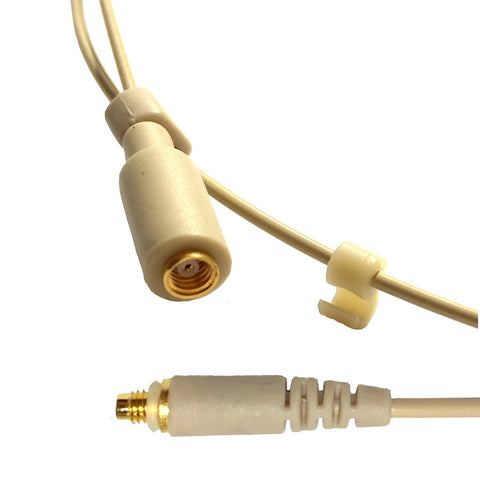

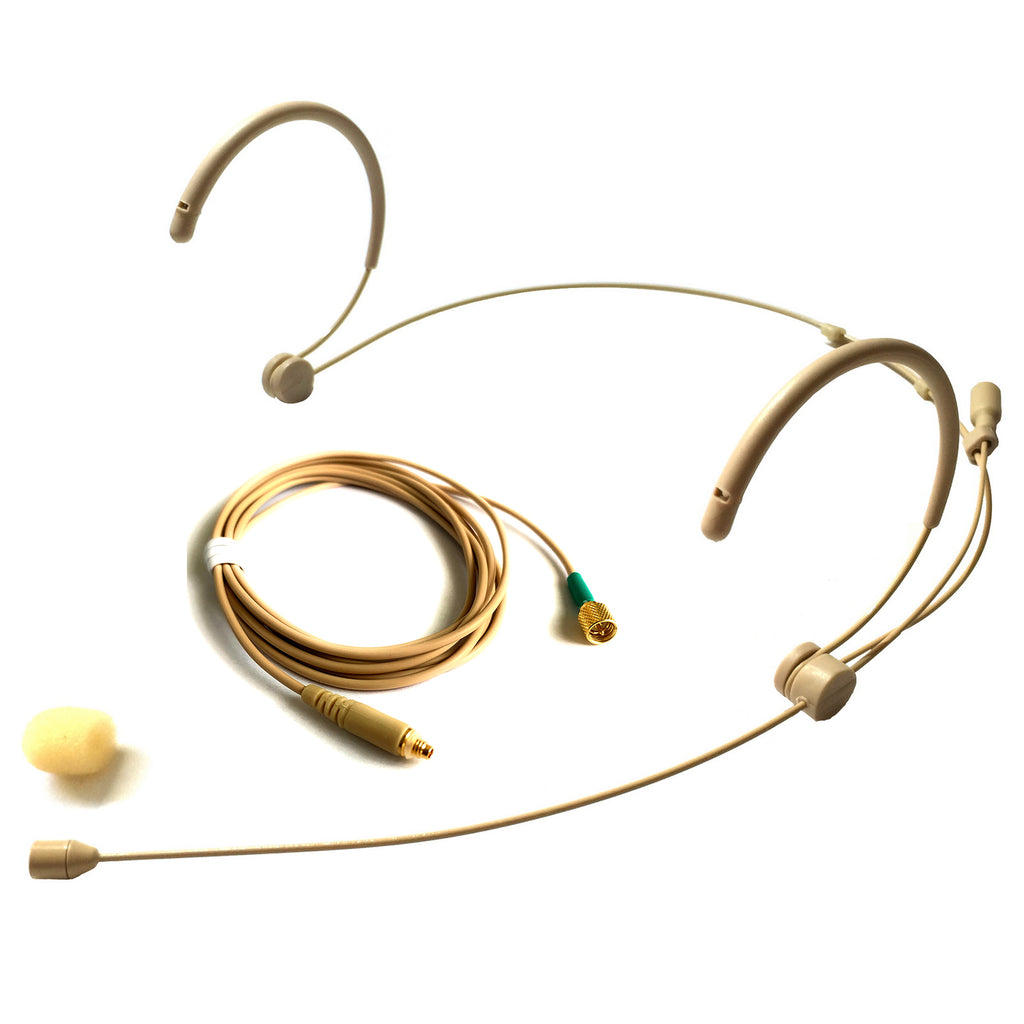

Detachable Cable with Connector
-
Windscreen
-
-
FEATURES AT A GLANCE

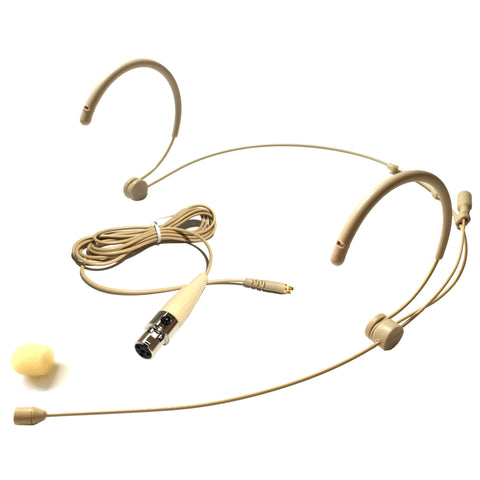

- Microdot Detachable Cable with 4 pin mini XLR TA4F connector, Compatible with Shure Wireless Transmitter Models: L1, 11, LX1, SC1, U1, UC1, UT1, T1, ULX1, UR1, PGX

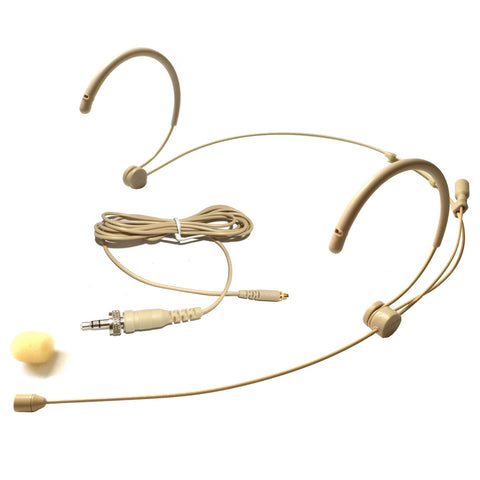

- Microdot Detachable Cable with 3.5mm Screw Locking Jack Plug, Compatible with Sennheiser Evolution Series, G2, X2 Digital Wireless Systems

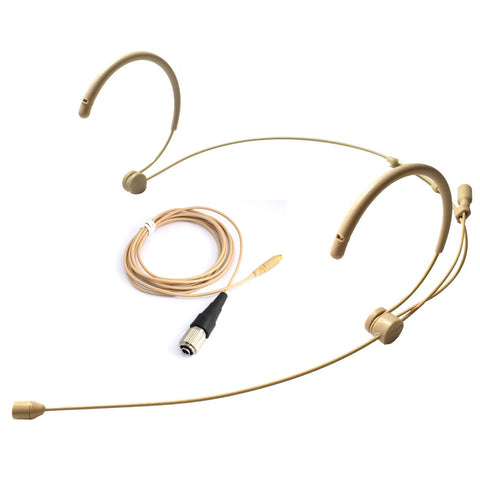

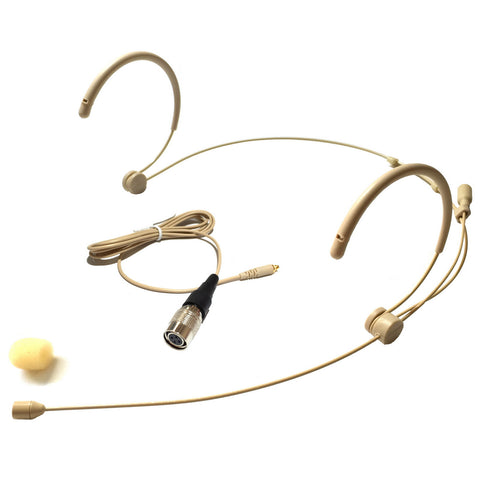

- Microdot Detachable Cable with 4 Pin Hirose type Connector, Compatible with Audio-Technica ATW-T1000 D /ATW-T310 /AEW-T1000 /ATW-T701, ATW-T75(7000 Series) /ATW-T210
- Microdot Detachable Cable with 3 Pin LEMO type Connector, Compatible with SENNHEISER SK 50, SK 250, SK 2000, SK 3063, SK 5012, SK 5212, SK 9000; SHURE UR1MLEMO, AD1LEMO3, ADX1m, AXT100LEMO3; Trantec SD7000 Digital Wireless; Wisycom MTP30;
- Excellent elastic steel bracket and soft plastic ear hang make it more comfortable and stable to adorn
- Use omnidirectional condenser cartridge, excellent vocal reduction effect, Intermediate frequency is fine and soft, very strong resolution and penetration
- Special processing of the metal surface, with strict test of acid proof,alkali proof and wear proof, display excellent. Various connecting plugs for choice, matching all kings of wireless system
Microphone and Performance
- Frequency Response: Omnidirectional: 20 Hz to 20 kHz
- Sensitivity: Omnidirectional: -43dB±2dB
- Standard Operation Voltage: 2.0V-10V.DC
- Output Impedance: 2200Ω ±30%(at 1KHz)
- SNR: >58db
- Operating Voltage: 1.5 to 12 Volts
- Power Supply Voltage: +5V with 10 kOhm load
Specifications
- Capsule Dimension(mm): Ø 0.16” (4 mm)
- Cable Length: 4 Feet (1.2 m)
-
Microphone Wiring
Brand Code Model Connector SHURE/JTS/Carvin/Trantec/TOA/Line 6 C4S SHURE All with TA4F (Tiny QG) Connector, including UC1, BLX1, FP1, GLXD1, PG1, PGX1, PGXD1, SLX1, ULX1, ULXD1, UR1, UR1M, JTS All with TA4F connector, Carvin UX16-BP, Trantec S5, TOA WM-4300, Line 6 TBP12: XD-V55, XD-V70, XD-V75, Relay G50, Relay G55, Relay G90, TA4F SENNHEISER/Audio 2000's C4SE SENNHEISERE volution Series, EW100, EW300, EW500, G2, G3, SK 1093, SK 20, Audio 2000's AWX6030M 3.5mm locking plug AKG C4A DPT700, PT40, PT45, PT60, PT61, PT80, PT81, PT400, PT450, PT2000, PT4000, PT4500 TA3F Audio Technica C4T T35, T75, T211, T601, T701, T1000a, T1001, 1000 Series, 1200 Series, 4000 Series, 5000 Series, 7000 Series,T27, T31, T51, T200, T201, T210, T210a, T300, T310, T310b, 1100 Series, 1400 Series, 2000 Series, 3000 Series, T1801, T801, Hirose Type 4-pin Lectrosonics C4L SM Series, UM Series, LM Series TA5F LEMO 3-Pin Type C4SL SENNHEISER SK 50, SK 250, SK 2000, SK 3063, SK 5012, SK 5212, SK 9000
SHURE UR1MLEMO, AD1LEMO3, ADX1m, AXT100LEMO3
Trantec SD7000 Digital Wireless
Wisycom MTP30LEMO 3 pin Mipro/Fitness Audio/Chiayo/Beyer/Peavey C4MI Mipro ACT-707-TS (TE), ACT-801 TS (TE), ACT-8Ta, ACT-80T, MT103, MT303, MT801, MT808, ACT-30T, ACT-50T, ACT-7T(A) Beyer Opus Series, TS-100, TS-300, TS-500, TS-800 Peavey PCX-V12-B, PCX-U302-B TA4F
