YPA M613 Mysterious Gooseneck Cardioid Mini Condenser Microphone

  • Sale
  • $80.00
  • Regular price $120.00

  • The M613 is a cardioid, mini-condenser instrumental microphone with in-line preamplifier is designed to clearly capture the sounds of today's professional horn players. The pickup pattern of the M613 provides high gain-before-feedback and excellent rejection of unwanted noise. With a high maximum sound pressure level (SPL), the M613 is ready to handle the demands of brass and woodwind instruments, and is a strong performer for percussion applications. The transformerless preamplifier circuitry of the M613 improves linearity across the full frequency range. In situations where phantom power is not available, the A63P preamplifier will perform exceptionally.

    The integrated gooseneck and ratcheting swivel joint of the M613 allows for easy microphone positioning and securing. Once the position is determined, the gooseneck angle brace ensures that the M613 will stay in place during even the most active performances.

    Available Options
    Wireless Applications Connector Compatibility
    Wired Applications A63P Preamplifier adapter

    • Tailored frequency response for open, natural sound reproduction
    • Compact, lightweight construction provides a low degree of visibility
    • Gooseneck, ratcheting swivel joint, and gooseneck angle brace allow for optimum placement and fixed positioning
    • Mysterious Ypa ruggedness and reliability

    Recommended Uses:
    • Saxophone
    • Soprano Saxophone
    • Drums(Toms)
    • Trombone
    • Trumpet
  • Microphone Type Signal-to-Noise Ratio
    Condenser 63 dB
    Polar Pattern  Power Phantom Power
    Cardioid (unidirectional) Require 48v phantom power
    Frequency Response Case
    20 to 20,000 Hz Steel and brass construction with black painted finish
    Decreasing Voltage Current Consumption
    -3dB (Vs=1.5V to 1V) 500μA (VS=1.5V RL=680Ω)
    Sensitivity (at 1000 Hz)  Weight
    -47 dBV/Pa Microphone with Cable and Tini Q-G
    Connector: 68g
    Preamplifier: 107g
    Maximum SPL Connector
    132 dB Three pin professional audio connector (male XLR type)
  • in m613 original box
    1* M613 Cardioid microphone with connector
    1* A63G gooseneck angle brace
    1* A63W windscreen
    1* A6B Storage bag
    1* Warranty certificate

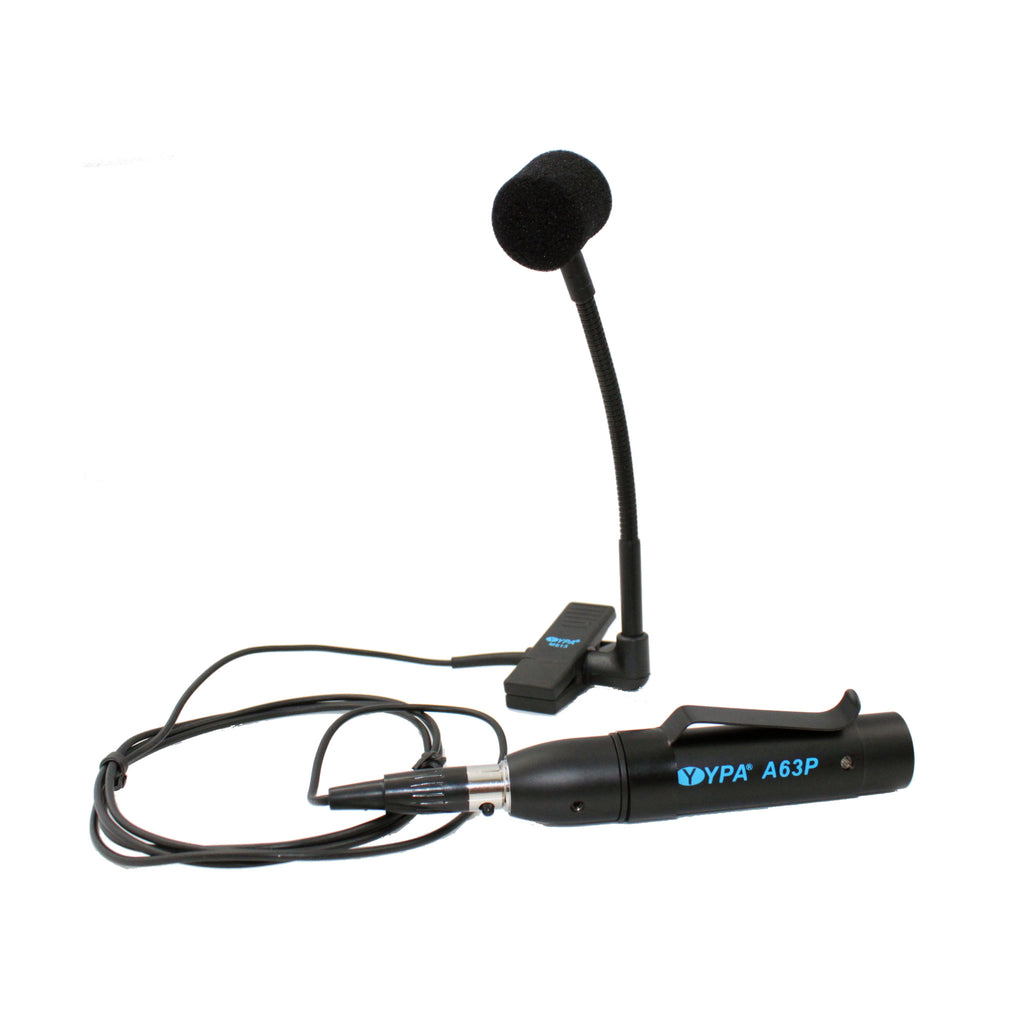

    in m613-XLR original box
    1* M613 Cardioid microphone with TA3F connector
    1* A63P Preamplifier with clip
    1* A63G gooseneck angle brace
    1* A63W windscreen
    1* A6B Storage bag
    1* Warranty certificate

  • Microphone Wiring

    Brand Code    Model Connector
    SHURE/JTS/Carvin/Trantec/TOA/Line 6 C4S SHURE All with TA4F (Tiny QG) Connector, including UC1, BLX1, FP1, GLXD1, PG1, PGX1, PGXD1, SLX1, ULX1, ULXD1, UR1, UR1M, JTS All with TA4F connector, Carvin UX16-BP, Trantec S5, TOA WM-4300, Line 6 TBP12: XD-V55, XD-V70, XD-V75, Relay G50, Relay G55, Relay G90, TA4F
    SENNHEISER/Audio 2000's C4SE SENNHEISERE volution Series, EW100, EW300, EW500, G2, G3, SK 1093, SK 20, Audio 2000's AWX6030M 3.5mm locking plug
    AKG C4A DPT700, PT40, PT45, PT60, PT61, PT80, PT81, PT400, PT450, PT2000, PT4000, PT4500 TA3F
    Audio Technica C4T T35, T75, T211, T601, T701, T1000a, T1001, 1000 Series, 1200 Series, 4000 Series, 5000 Series, 7000 Series,T27, T31, T51, T200, T201, T210, T210a, T300, T310, T310b, 1100 Series, 1400 Series, 2000 Series, 3000 Series, T1801, T801, Hirose Type 4-pin
    Lectrosonics C4L SM Series, UM Series, LM Series TA5F
    Samson C4SA TX3 (Black), UT5, UT6 Hirose 6 pin
    Mipro/Fitness Audio/Chiayo/Beyer/Peavey C4MI Mipro ACT-707-TS (TE), ACT-801 TS (TE), ACT-8Ta, ACT-80T, MT103, MT303, MT801, MT808, ACT-30T, ACT-50T, ACT-7T(A) Beyer Opus Series, TS-100, TS-300, TS-500, TS-800 Peavey PCX-V12-B, PCX-U302-B TA4F
