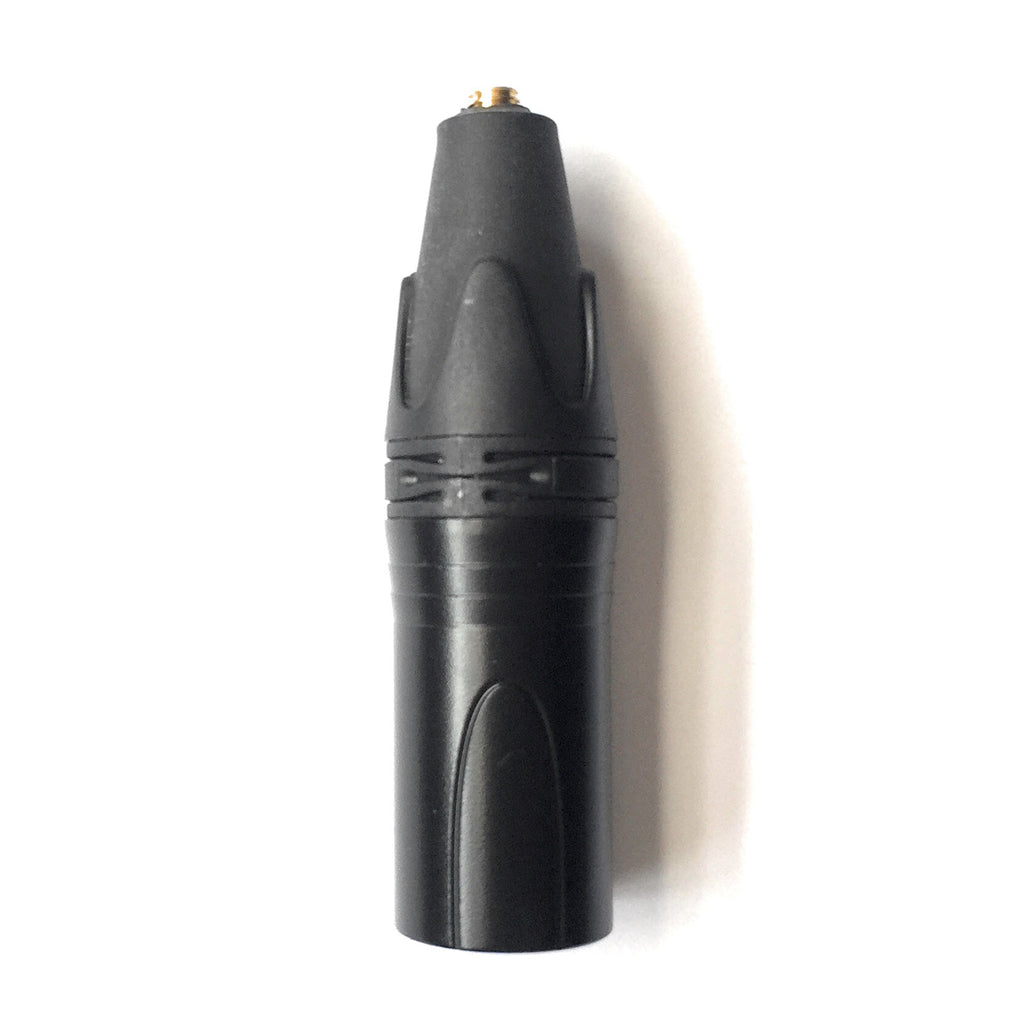

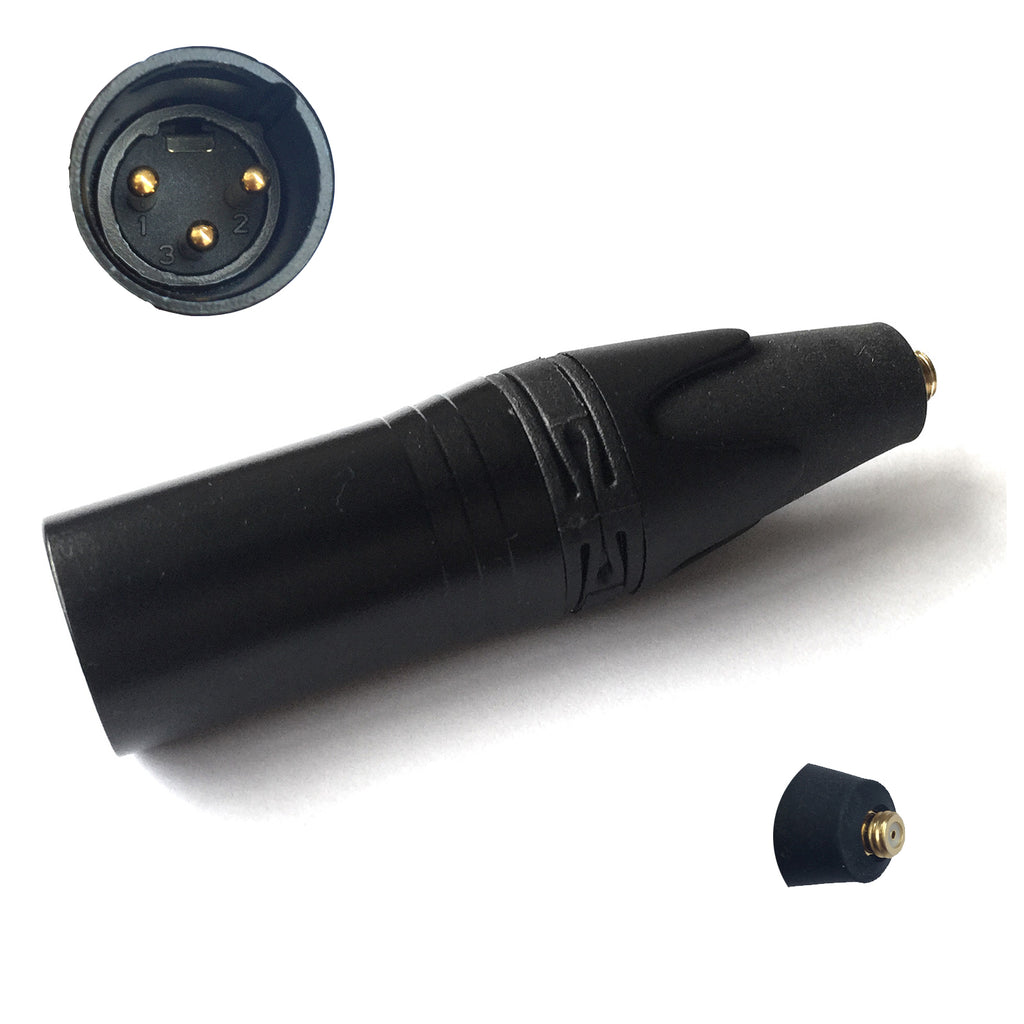

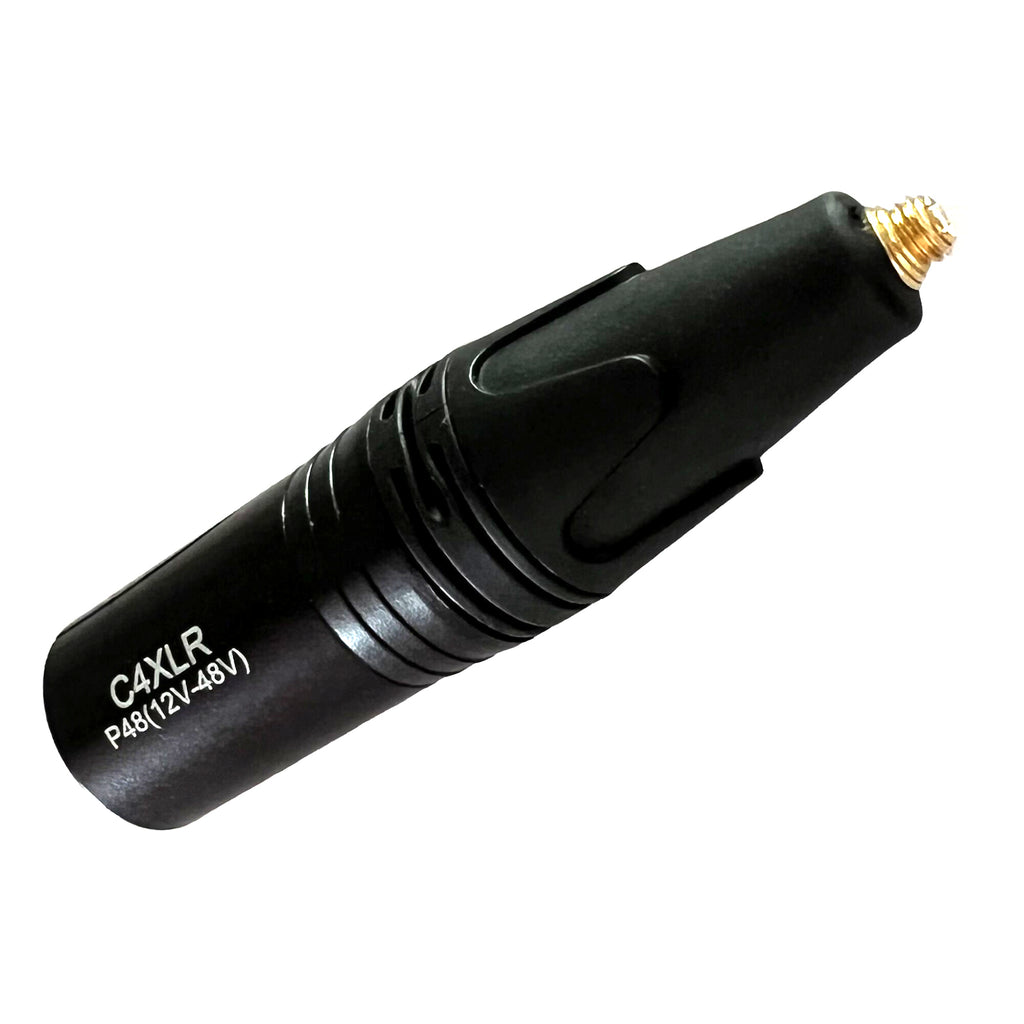

YPA C4XLR MicroDot to 3-pin XLR (P48) Adapter

  • Sale
  • $44.99
  • Regular price $59.99

  • The YPA C4XLR  is an adapter featuring XLR and Microdot connections allowing you to attach a miniature DPA microphone to a preamp, mixer, camera, or similar device able to supply phantom power.

    The adapter is functional at 12V, but requires 48V for the connected mic to reach full specifications. The active-signal balanced wiring allows for longer cable runs with less noise—with a common mode rejection ratio (CMRR) that is better than 60 dB in the 50 Hz to 15 kHz range.

    • Adapts Miniature Mic to XLR Connector
    • Connect to Mixer, Preamp, or Camera
    • Allows Mic to Operate on Phantom Power
    • Supports 12 to 48V Phantom Power Sources
    • Connector A:  1 x Lockable Microdot Male
    • Connector B:  1 x Lockable 3-Pin XLR Male
    • Output impedance:  100 ohm
    • Cable drive capability:  300 m (984 ft)
    • Power supply:  48V ±4 V
    • Current consumption:  3.5 mA
    • CMRR at 1 kHz:  > 60 dB
    • Package Weight:  0.16 lb
    • Adapter Size:  Ø0.75 x 2.9"(Ø19mm x 74mm)
    • Box Dimensions (LxWxH):  4.3 x 2.8 x 1"
  • in original box
    1* C4XLR Microdot Adapter
    1* Protective nets

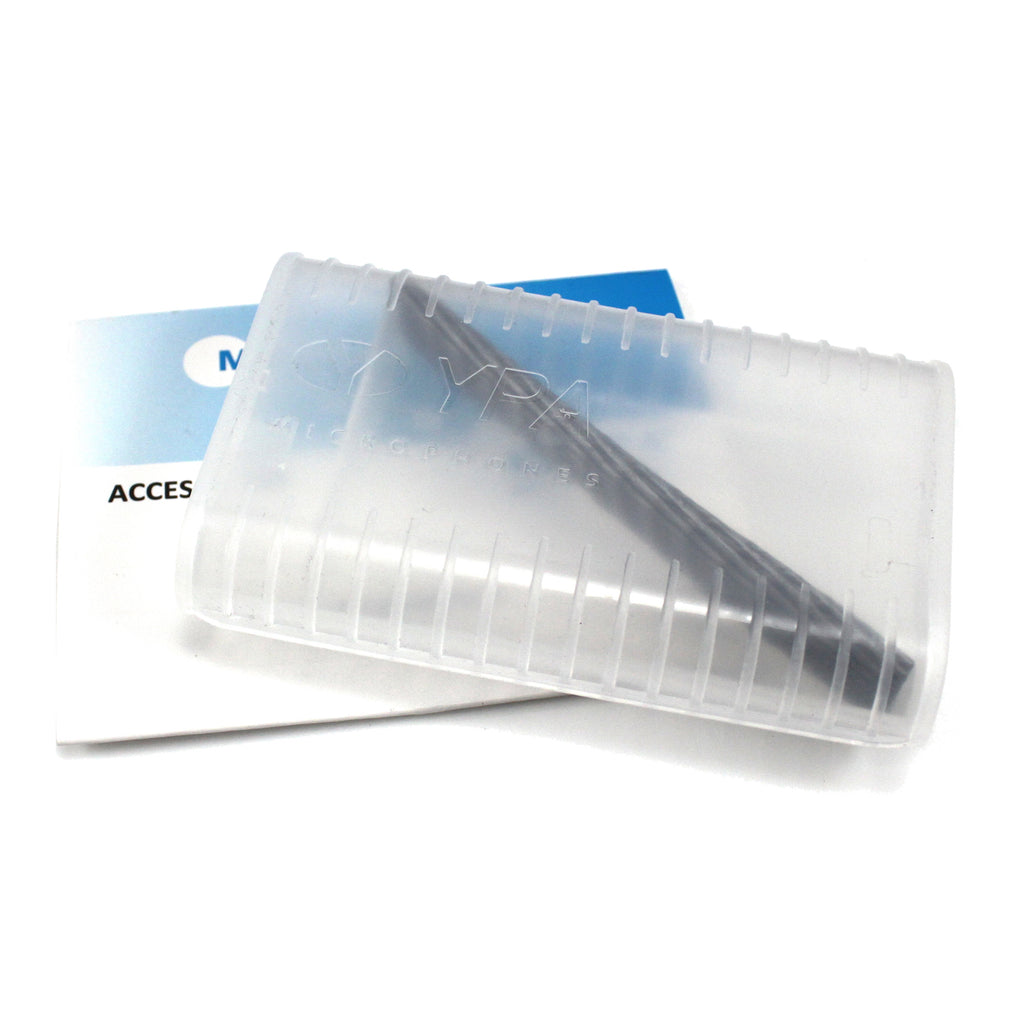

    1* Carry Case

  • Wireless adapters for DPA miniature microphones

    Using YPA adapters for DPA miniature and lavalier microphones are compatible with the professional wireless systems listed below.

    The model number is typically found on the transmitter.

    Other configurations are possible; however YPA Microphones cannot guarantee full compatibility.

    Brand /Transmitter YPA Adapter DPA Adapter
    AKG DPT 70 C4A-2 DAD6017
    AKG DPT 700 C4A-2 DAD6017
    AKG PT 45 C4A-2 DAD6017
    AKG PT 60 C4A-2 DAD6017
    AKG PT 80 C4A-2 DAD6017
    AKG PT 81 C4A-2 DAD6017
    AKG PT 400 C4A-2 DAD6017
    AKG PT 450 C4A-2 DAD6017
    AKG PT 470 C4A-2 DAD6017
    AKG PT 4000 C4A-2 DAD6017
    AKG PT 4500 C4A-2 DAD6017
    Audio Ltd.
    Audio Ltd EN2 TX C4SE-2 DAD6034
    Audio-Technica AEW-T1000 C4T-2 DAD6033
    Audio-Technica ATW-T1000 D C4T-2 DAD6033
    Audio-Technica ATW-T101 (U100) C4AW-2 DAD6021
    Audio-Technica ATW-T210 C4T-2-A DAD6028
    Audio-Technica ATW-T310 C4T-2 DAD6033
    Audio-Technica ATW-T51 (1400 ser.) C4T-2-B DAD6022
    Audio-Technica ATW-T75 (7000 ser.) C4T-2-A DAD6028
    Audio-Technica ATW-T701 C4T-2 DAD6033
    Beyerdynamic OPUS 300 C4MI-2 DAD6033
    Beyerdynamic OPUS 500 C4MI-2 DAD6033
    Beyerdynamic OPUS 600 C4MI-2 DAD6033
    Beyerdynamic OPUS 800 C4MI-2 DAD6033
    Beyerdynamic OPUS 900 C4MI-2 DAD6033
    Electro-Voice CSB-1000 (RE1/RE2) C4EV-2 DAD6030
    Lectrosonics LM, SM and UM series C4L-2 DAD3056
    Line 6
    XD-V70L C4S-2 DAD6010
    Mipro ACT-707T C4MI-2 DAD6033
    Mipro ACT-707TE C4MI-2 DAD6033
    Mipro ACT-707TM C4MI-2 DAD6033
    Mipro ACT-707TS C4MI-2 DAD6033
    Mipro ACT-71T C4MI-2 DAD6033
    Mipro ACT-7T C4MI-2 DAD6033
    Mipro ACT-MT103 C4MI-2 DAD6033
    Mipro ACT-MT303 C4MI-2 DAD6033
    Mipro ACT-MT801 C4MI-2 DAD6033
    Mipro ACT-MT808 C4MI-2 DAD6033
    Samson CT-2 C4SA-2 DAD6009
    Samson TX-3 C4SA-2 DAD6009
    Samson UT1L C4A-2 DAD6017
    Samson UT4 C4SA-2 DAD6009
    Samson UT5 C4SA-2 DAD6009
    Samson UT6 C4SA-2 DAD6009
    Samson VT2L C4A-2 DAD6017
    Sennheiser Evolution / G2 Series C4SE-2 DAD6034
    Sennheiser SK 50 C4SL-2 DAD6003
    Sennheiser SK 250 C4SL-2 DAD6003
    Sennheiser SK 2000 C4SL-2 DAD6003
    Sennheiser SK 3063 C4SL-2 DAD6003
    Sennheiser SK 5012 C4SL-2 DAD6003
    Shure GLXD1 C4S-2 DAD6010
    Shure PGX1 C4S-2 DAD6010
    Shure SC1 C4S-2 DAD6010
    Shure SLX1 C4S-2 DAD6010
    Shure U1 C4S-2 DAD6010
    Shure ULX1 C4S-2 DAD6010
    Shure UR1 C4S-2 DAD6010
    Shure UR1M C4S-2 DAD6010
    Shure UR1MLemo3 C4SL-2 DAD6003
    Shure UT1 C4S-2 DAD6010
    Sony Freedom WRT 805 C4SF-2 DAD6019
    TELEX C4EV-2 DAD6030
    TOA WM4300 C4S-2 DAD6010
    Trantec S5.5 (UHF) C4TR-2 DAD6036
    Trantec SD7000 Digital Wireless C4SL-2 DAD6003
    Wisycom MTP30 C4SL-2 DAD6003
    X2 Digital Wireless Systems C4SE-2 DAD6034
    XLR adapter without belt clip C4XLR DAD6001
    XLR adapter without belt clip and low cut MA201A DAD4099
