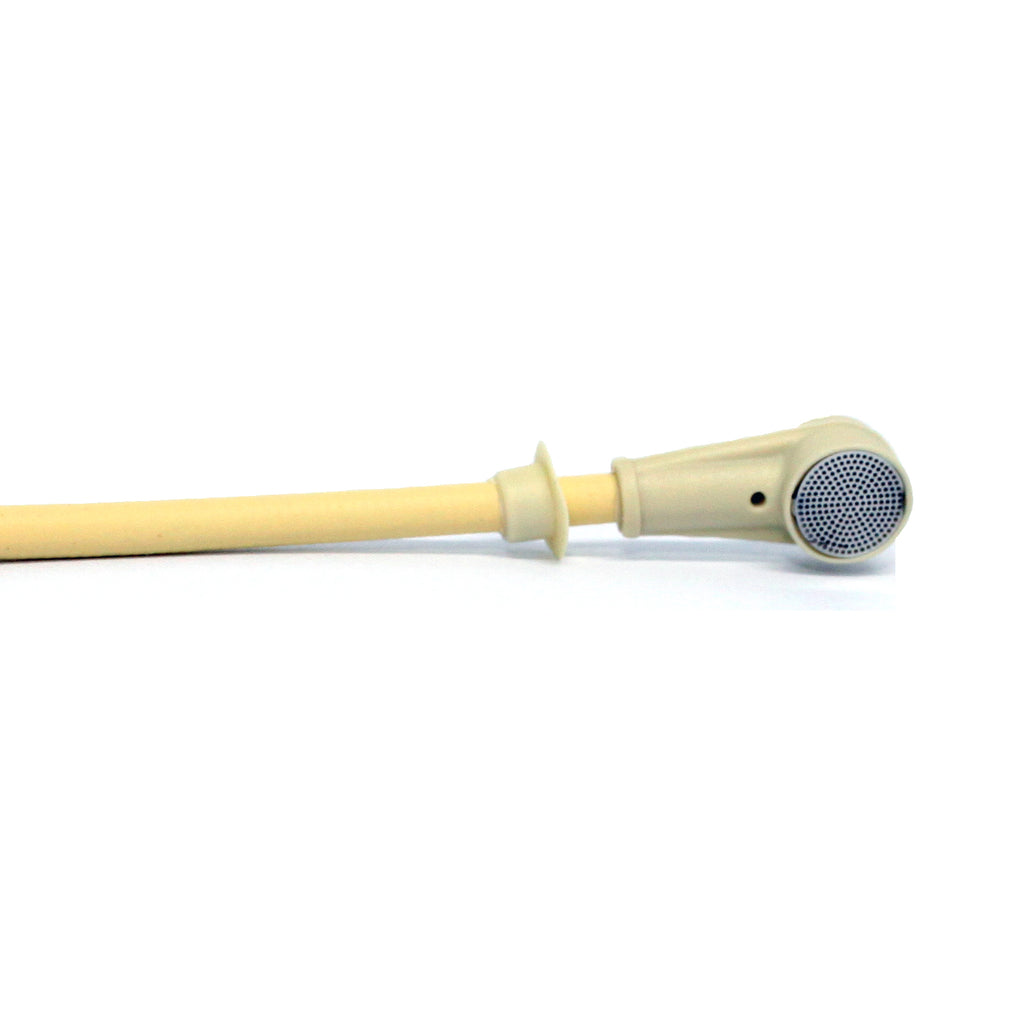

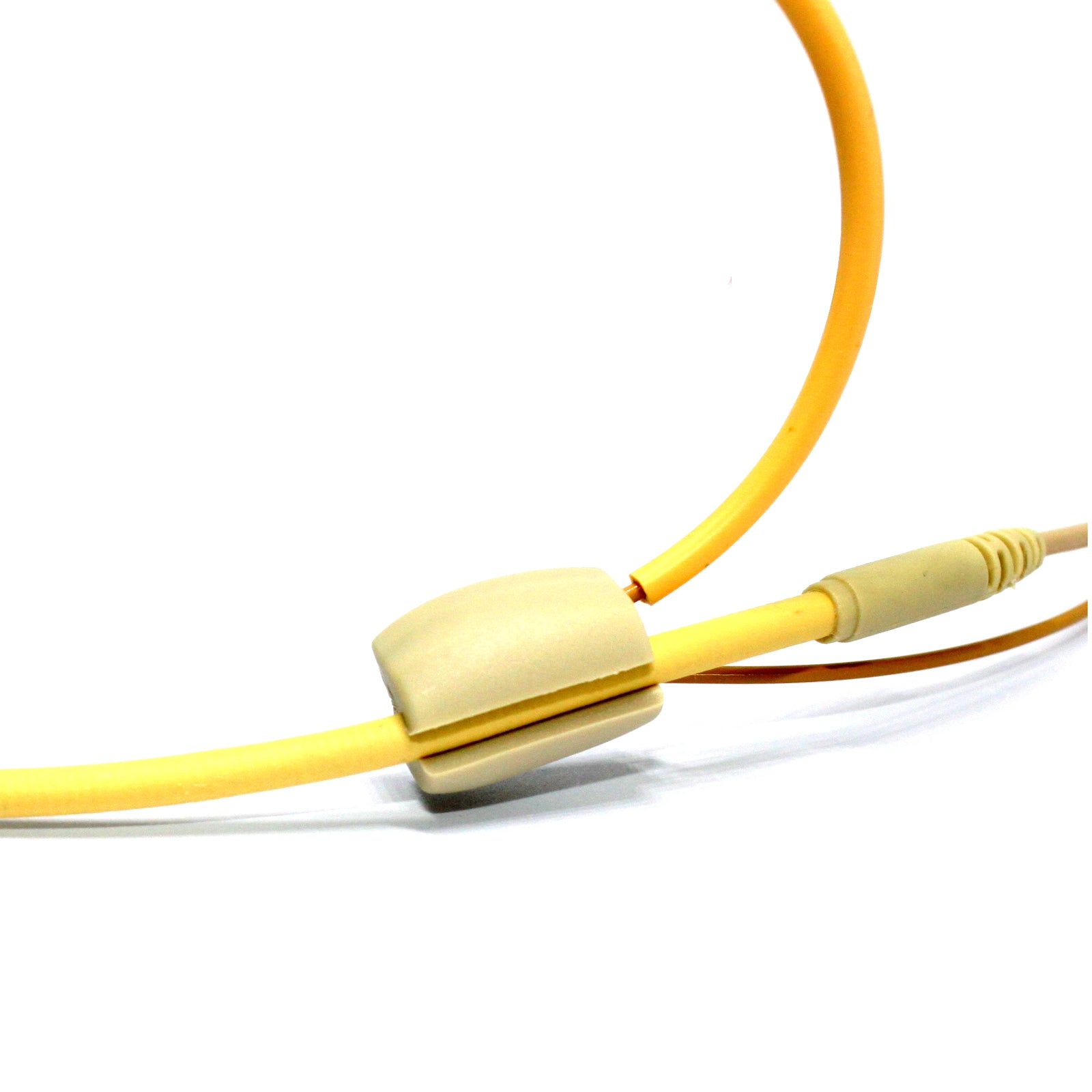

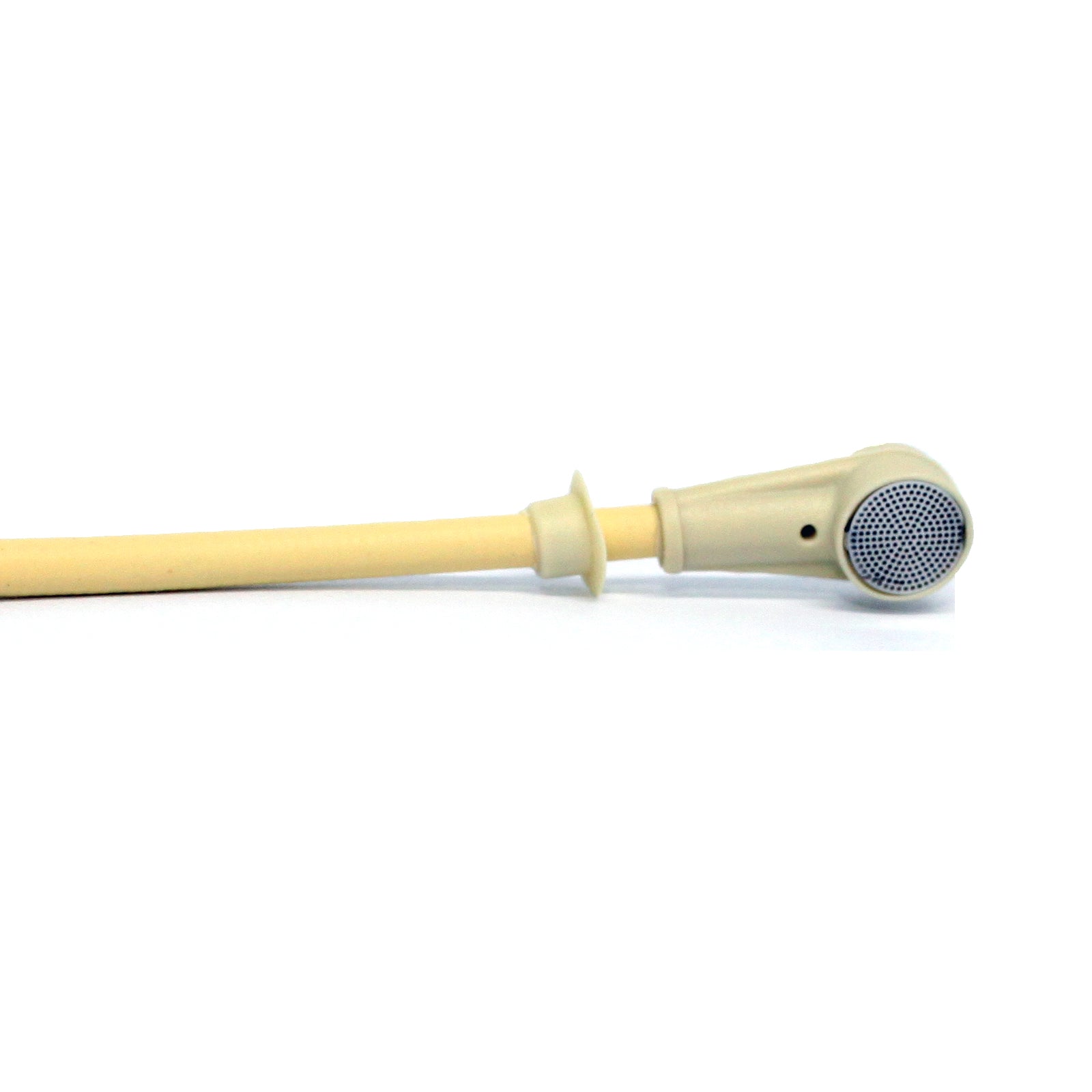

Wide bandwidth Uni-directional electret condenser mic ensures clean transparent audio and enhanced vocal pickup with improved gain before feedback. Durable thin-metal frame and flexible gooseneck can be easily molded to any user. Ergonomic design and comfortable fit with or without glasses, hats, or headphones and no hairstyle hindrance.
The 6028 Headset is supplied with:
- Fixed Headframe with Microphone

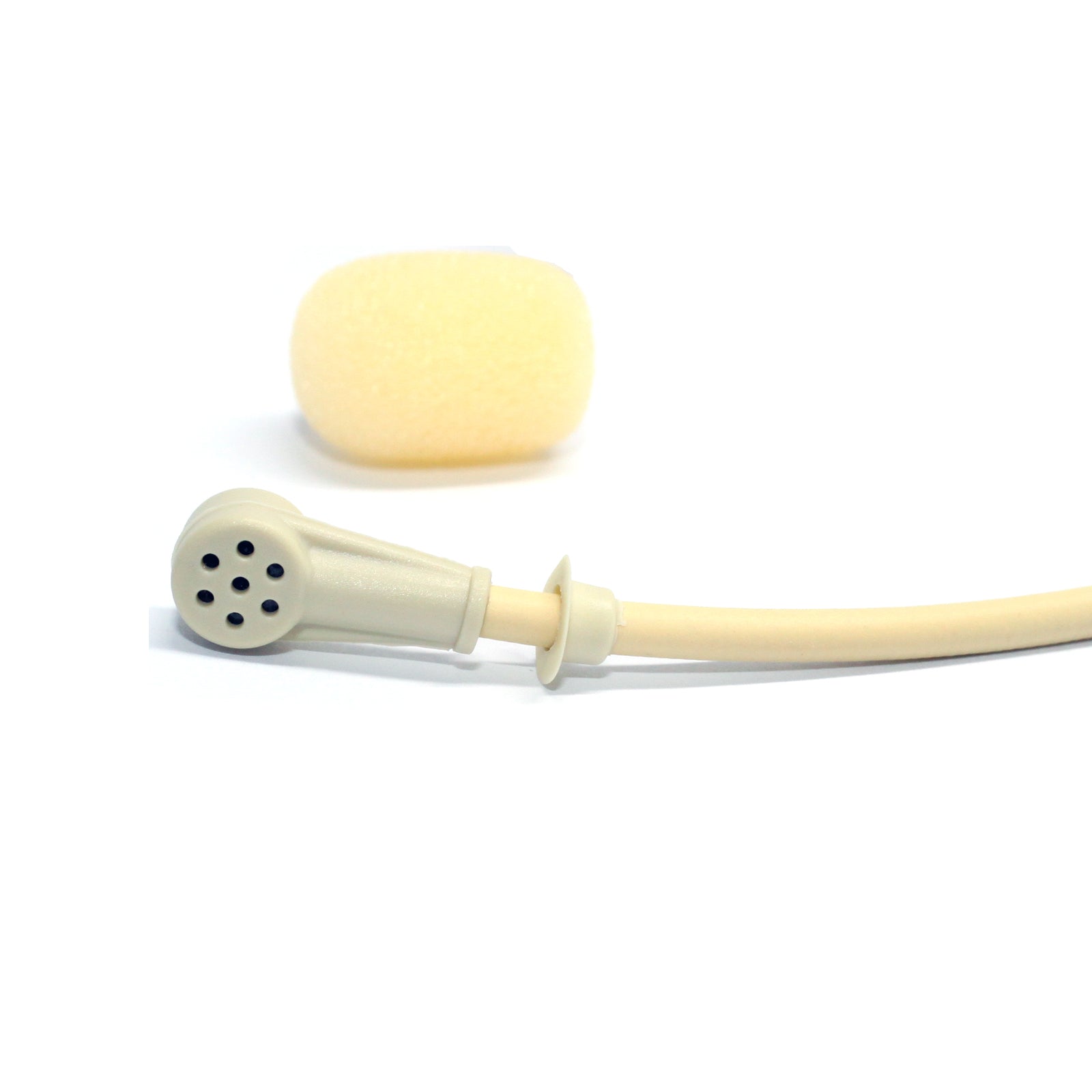

- Windscreen
-
FEATURES AT A GLANCE

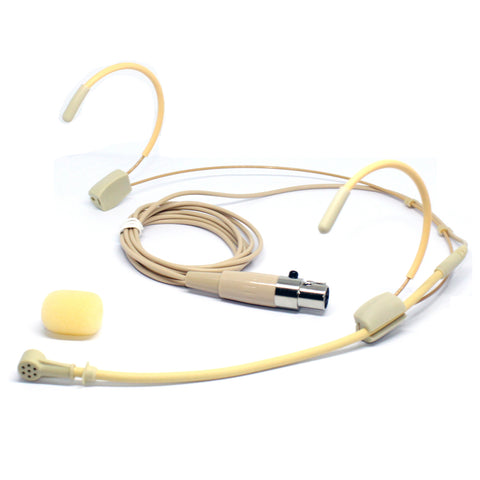

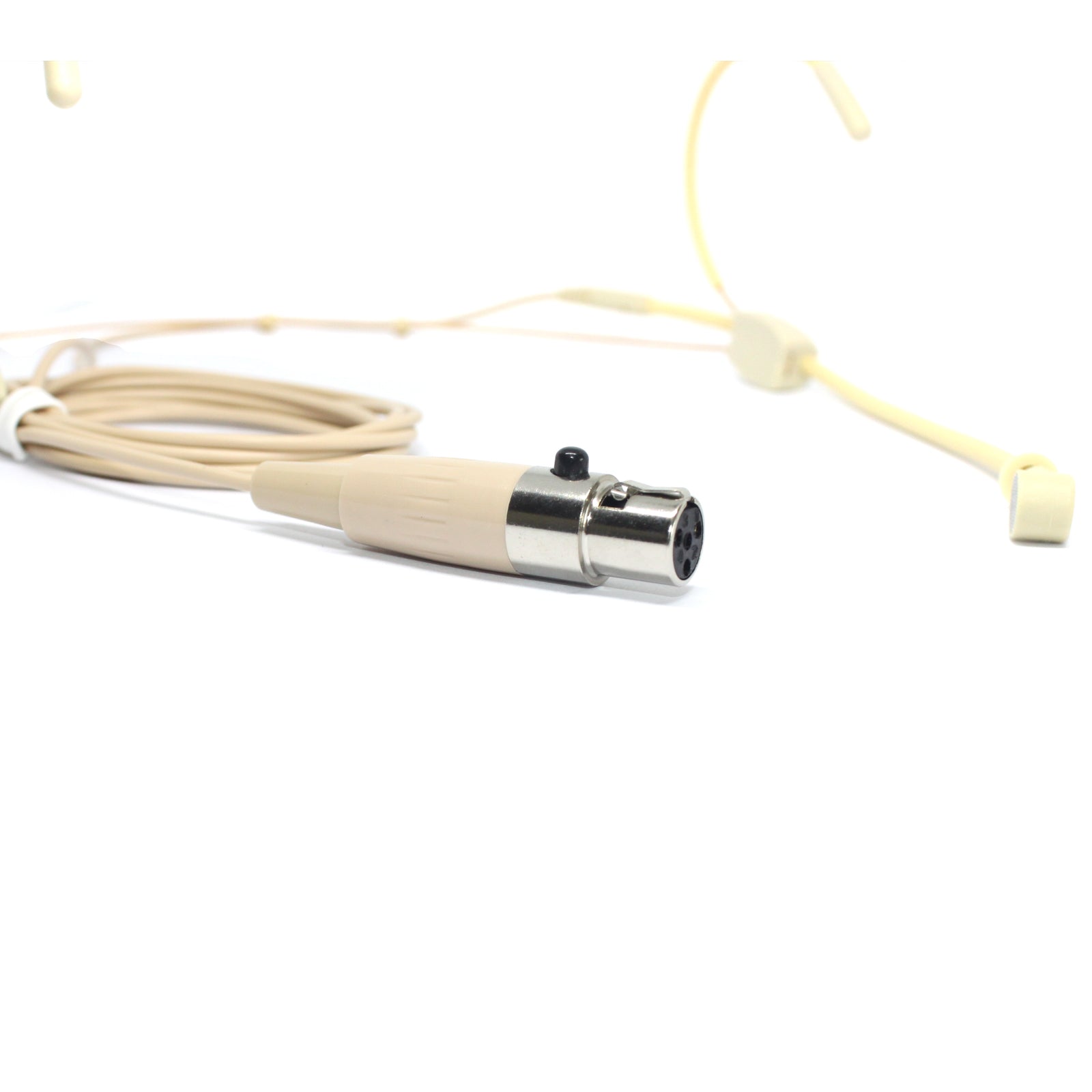

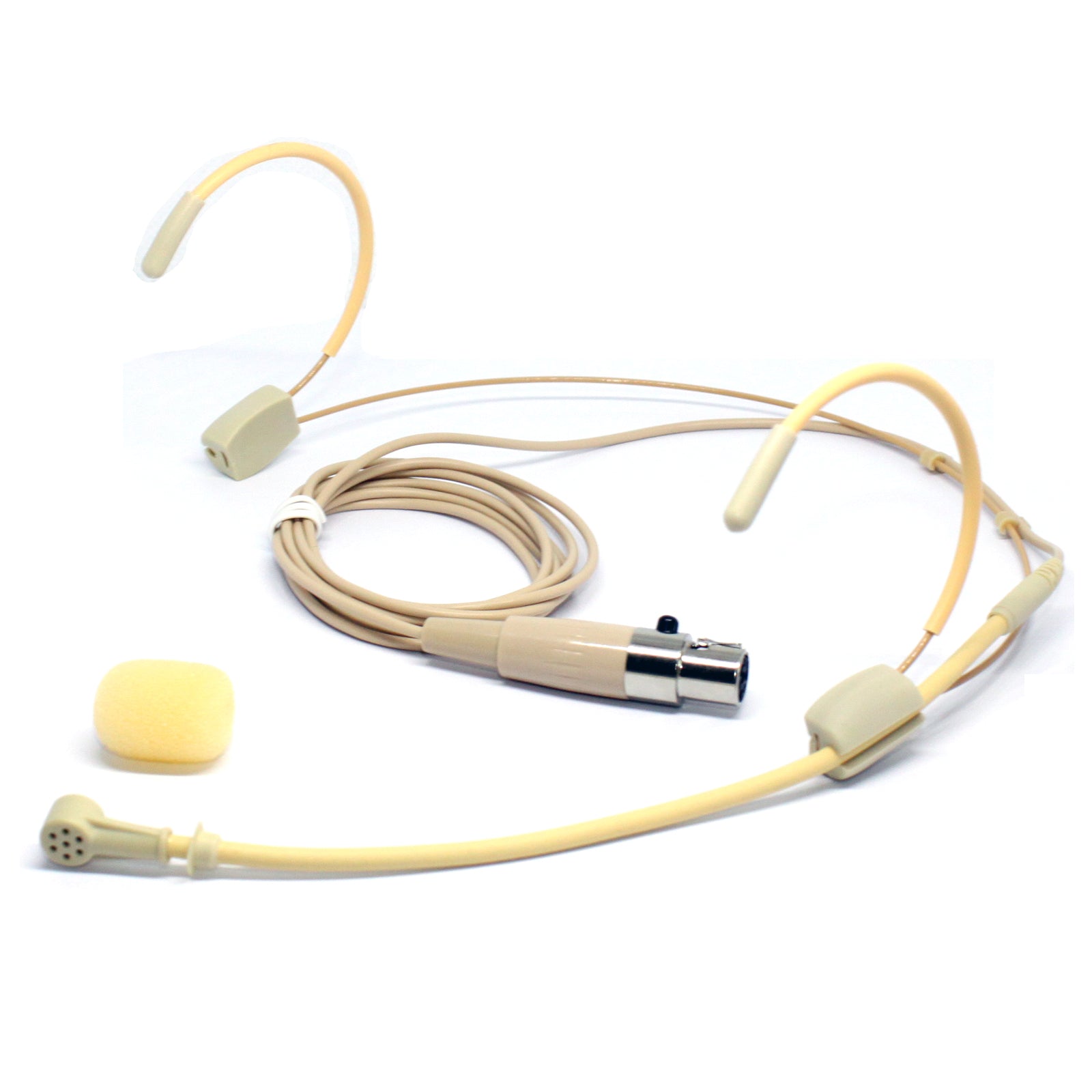

- MD6028SL with 4 pin mini XLR TA4F connector, Compatible with Shure Wireless Transmitter Models: L1, 11, LX1, SC1, U1, UC1, UT1, T1, ULX1, UR1, PGX

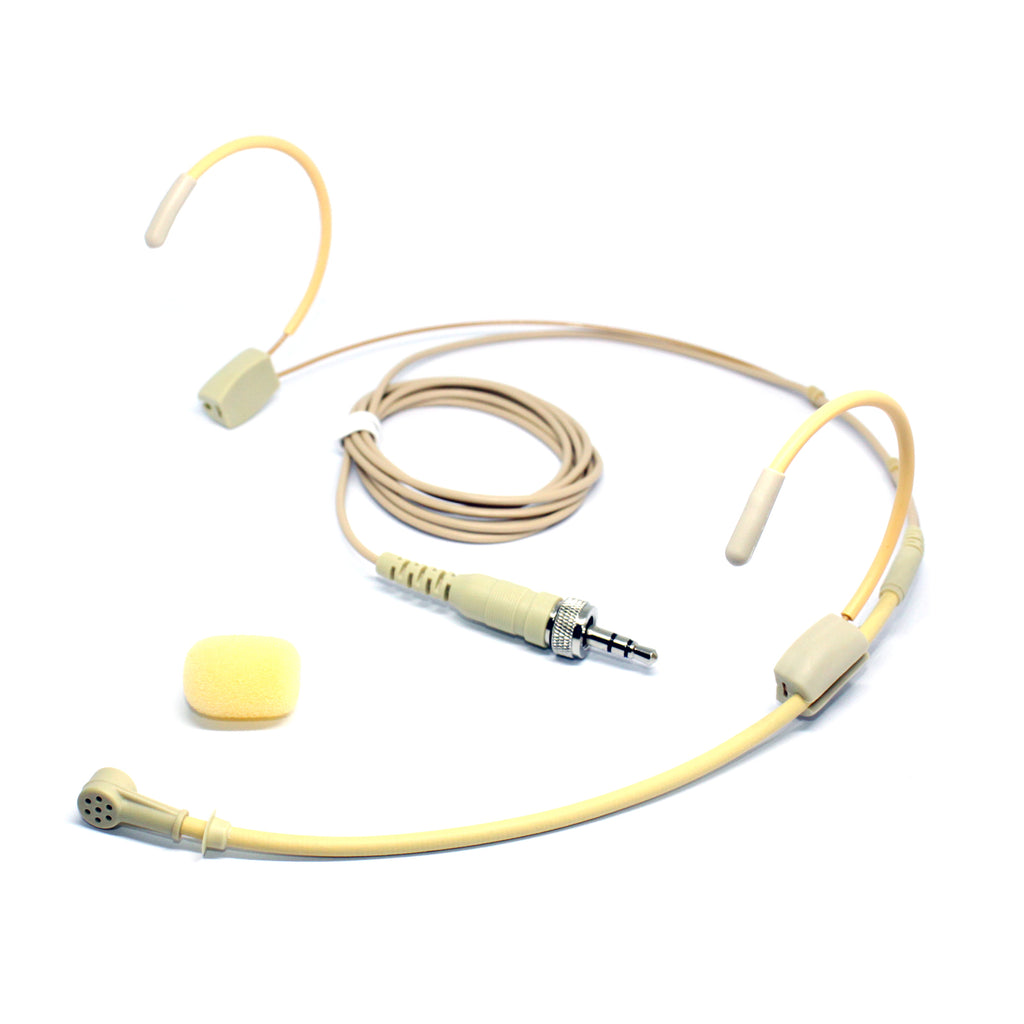

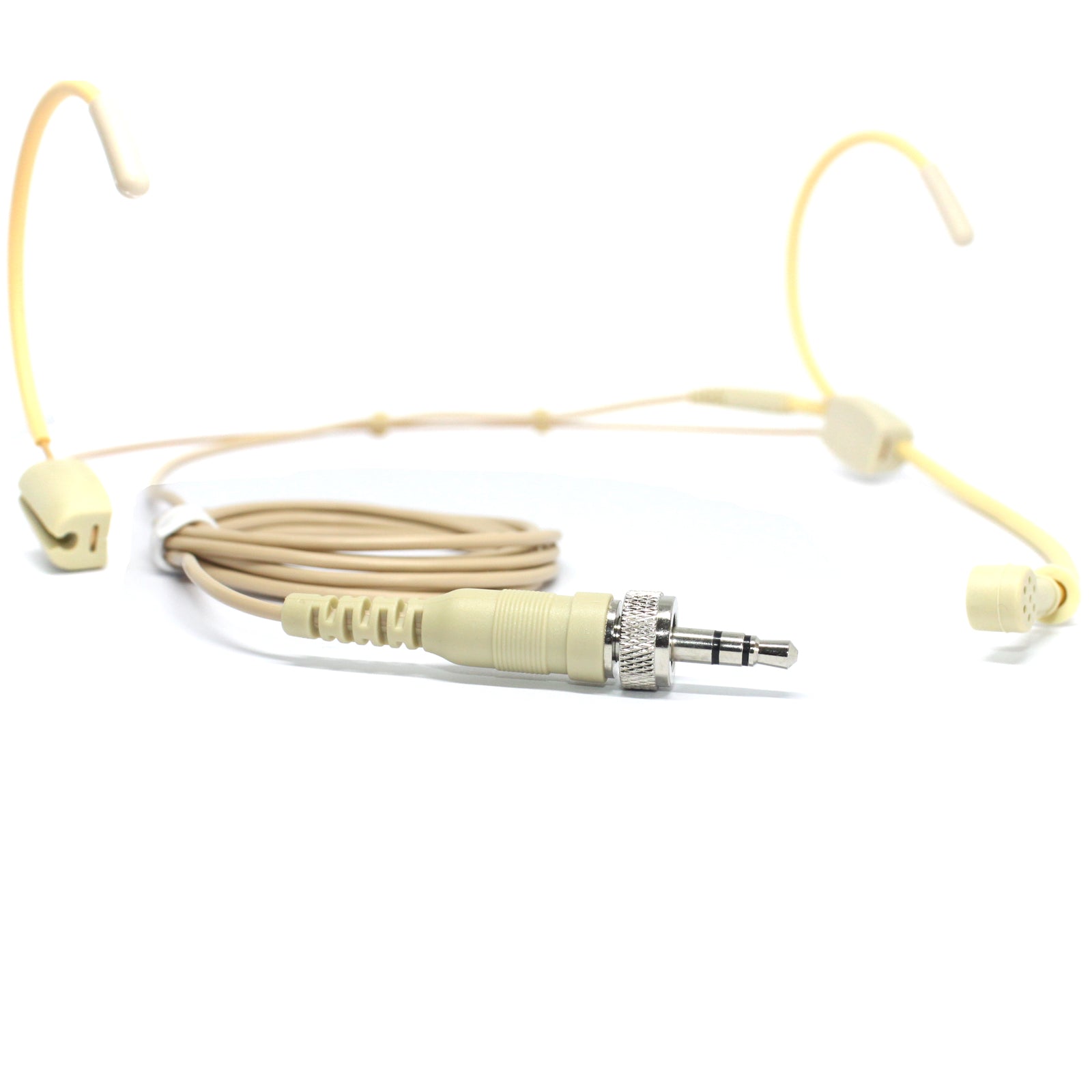

- MD6028SEL with 3.5mm Screw Locking Jack Plug, Compatible with Sennheiser Evolution Series, G2, X2 Digital Wireless Systems
- Used 6mm high quality Professional vocal pickup condenser microphone,Excellent voice reduction effect, rich&soft intermediate frequency
- The soft tube can be adjusted freely and reach the best effect of pickup, Sweat and Dust-Proof Made Primarily for Indoor and Outdoor professionals
- Designed for Use on Stage, Houses of Worship, Lecturers and Other Applications Requiring Minimum Microphone Visibility with hand-free Operation
Microphone and Performance
- Polar pattern: Unidirectional
- Mic diameter: 6.0*2.8mm
- Sensitivity: - 45dB ±2db
- Frequency Range: 20-20KHZ
- Output Impedance: <2.2k ohms
- Standard Operation Voltage: 2.0V-10V.DC
- SNR: >63db
- Wire length: 1.2m
Specifications
- Capsule Dimension(mm): Ø 0.24” (6 mm)
- Cable Length: 4 Feet (1.2 m)
-
Microphone Wiring
Brand Code Model Connector SHURE/JTS/Carvin/Trantec/TOA/Line 6 S SHURE All with TA4F (Tiny QG) Connector, including UC1, BLX1, FP1, GLXD1, PG1, PGX1, PGXD1, SLX1, ULX1, ULXD1, UR1, UR1M, JTS All with TA4F connector, Carvin UX16-BP, Trantec S5, TOA WM-4300, Line 6 TBP12: XD-V55, XD-V70, XD-V75, Relay G50, Relay G55, Relay G90, TA4F SENNHEISER/Audio 2000's SE SENNHEISERE volution Series, EW100, EW300, EW500, G2, G3, SK 1093, SK 20, Audio 2000's AWX6030M 3.5mm locking plug AKG A DPT700, PT40, PT45, PT60, PT61, PT80, PT81, PT400, PT450, PT2000, PT4000, PT4500 TA3F Audio Technica T T35, T75, T211, T601, T701, T1000a, T1001, 1000 Series, 1200 Series, 4000 Series, 5000 Series, 7000 Series,T27, T31, T51, T200, T201, T210, T210a, T300, T310, T310b, 1100 Series, 1400 Series, 2000 Series, 3000 Series, T1801, T801, Hirose Type 4-pin Lectrosonics L SM Series, UM Series, LM Series TA5F Samson SA TX3 (Black), UT5, UT6 Hirose 6 pin Mipro/Fitness Audio/Chiayo/Beyer/Peavey MI Mipro ACT-707-TS (TE), ACT-801 TS (TE), ACT-8Ta, ACT-80T, MT103, MT303, MT801, MT808, ACT-30T, ACT-50T, ACT-7T(A) Beyer Opus Series, TS-100, TS-300, TS-500, TS-800 Peavey PCX-V12-B, PCX-U302-B TA4F
