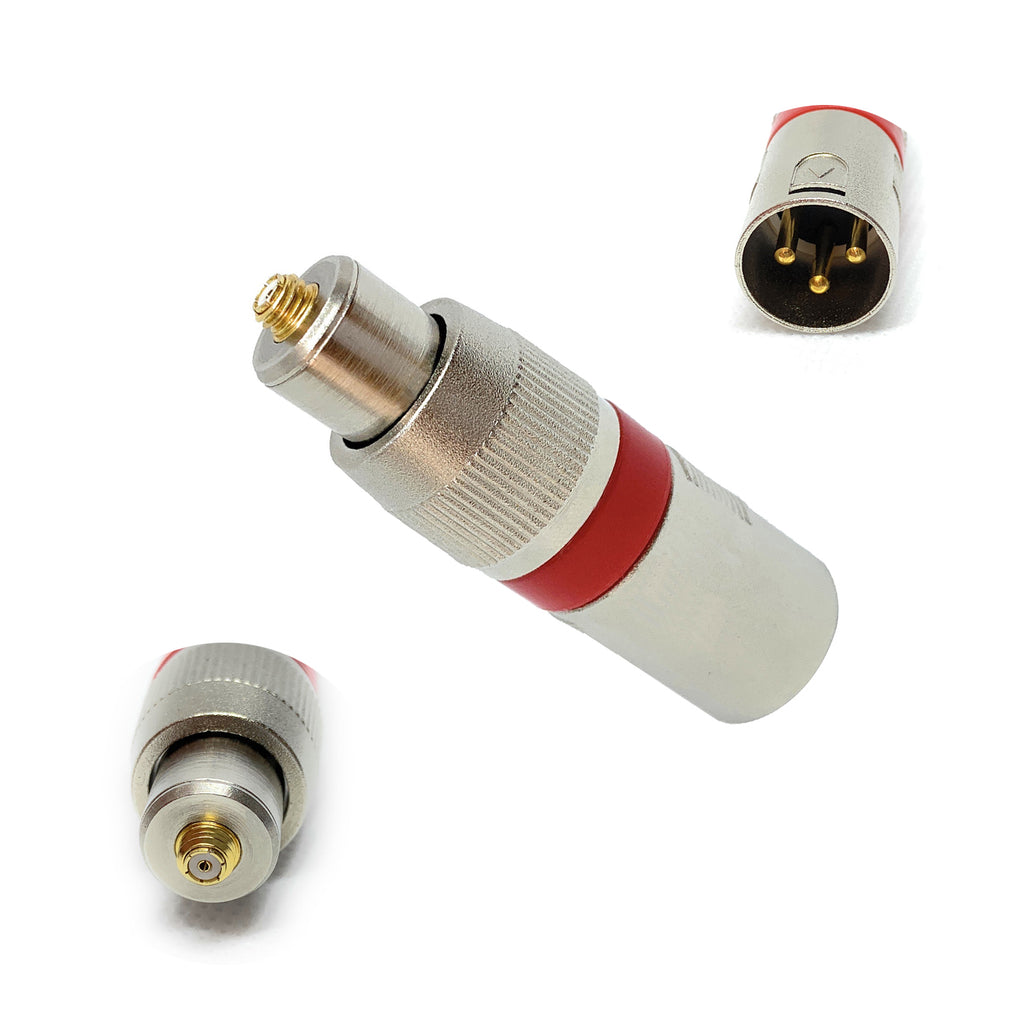

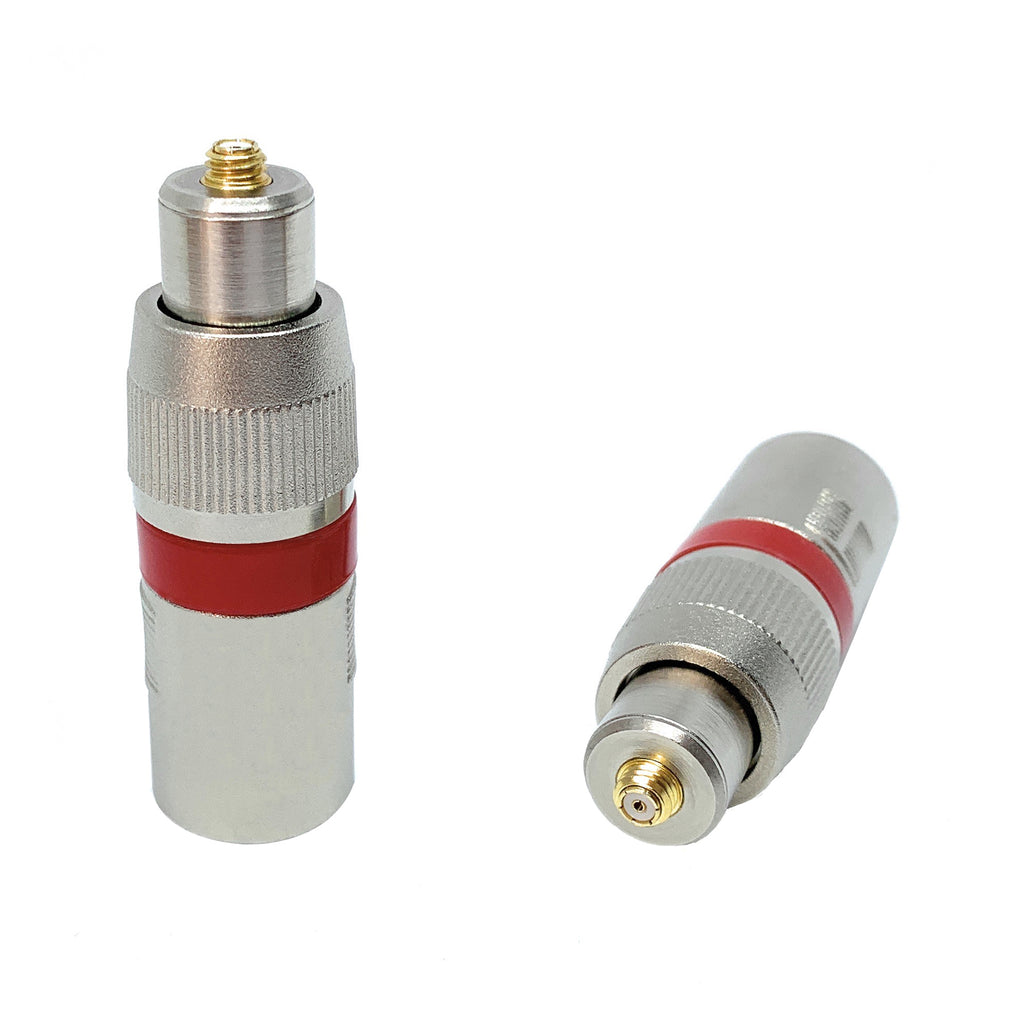

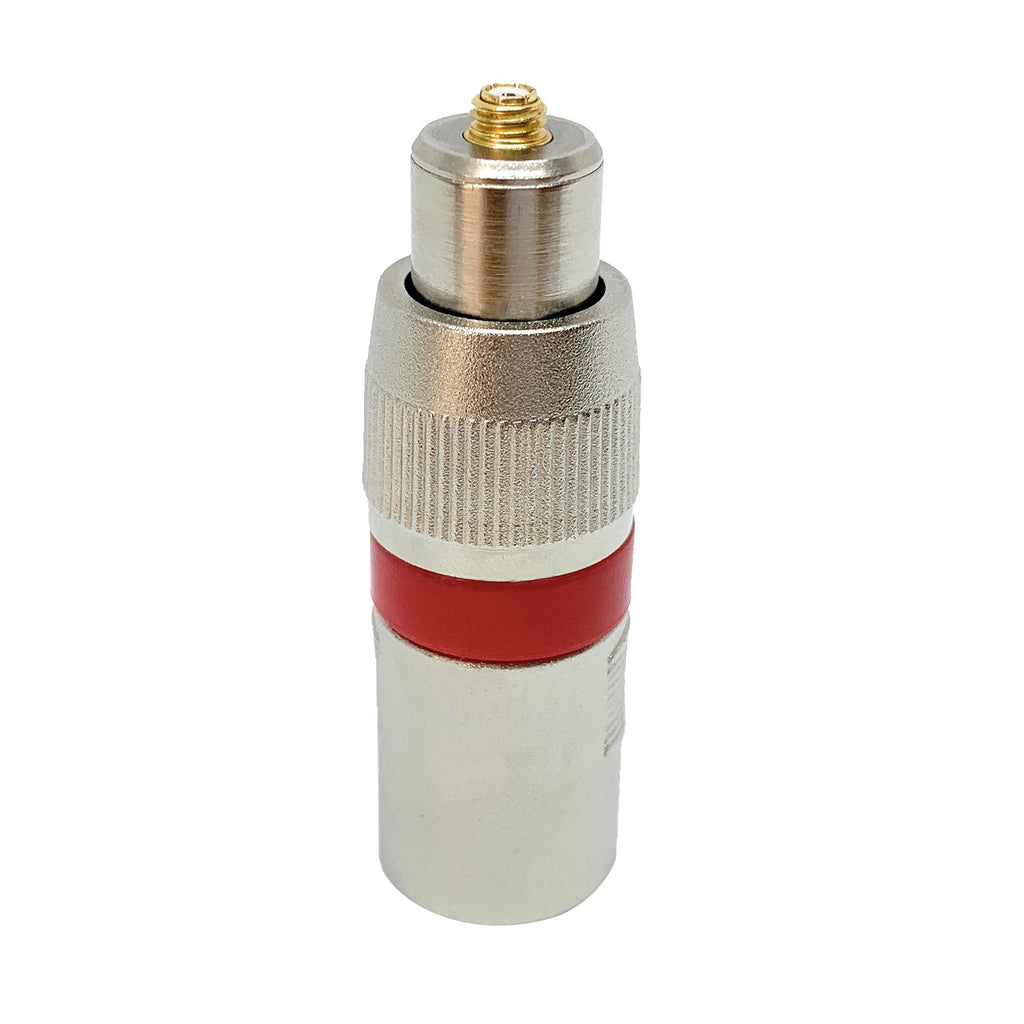

The EM2B Electret Microphone Power Adapter from YPA Microphones allows hardwired use of a lavalier mic by converting phantom 48V to 5.6V electret power, and outputs an electronically balanced signal with low impedance. This adapter is designed for use with DPA microphones and converts a Microdot connector to a standard 3-pin XLR male connector.
A small widget that allows hardwired use of lavalier mikes.
Electret converter PCB connector, 48 V Phantom power Voltage converter and balancing amp for operating electret microphones on 48 V Phantom powered inputs.
It converts Phantom 48 V to 5.6 V electret power and outputs the signal electronically balanced with low impedance. A range of models is available with standard sockets to fit the plugs of most popular radiomike systems in 2 or 3 wired configuration.
The connector is designed for connecting DPA microphones to XLR3M connections.
MicroDot to XLR3M Adapter for use with DPA's series of Miniature Microphones such as the 6060, 4060, 4660, 4160, 4080, 6066, 4066, 4166, 4266, 4088, 4188, 4288, 4061, 4062, 4063, 4065, 4067, 4071, d:vote 4099, d:fine headsets, d:screet miniature.
Converts DPA Headset, Earset & Lavalier Microphones To Mixer, PA, XLR socket and so on which offer 48V phantom power
Adapter Type Converts phantom 48 V to electret 5.6 V power Connectors Microdot to 3-pin XLR male Length 2.3" (59 mm) approx. Diameter Adapter: 0.75" (19 mm) approx.
Microdot connector: 0.2" (5 mm)
Weight 1.1 oz (32 g) approx.
in original box
1* YPA EM2B adapter
1* Protective nets
1* Carry Case
Limited 1-Year Warranty
