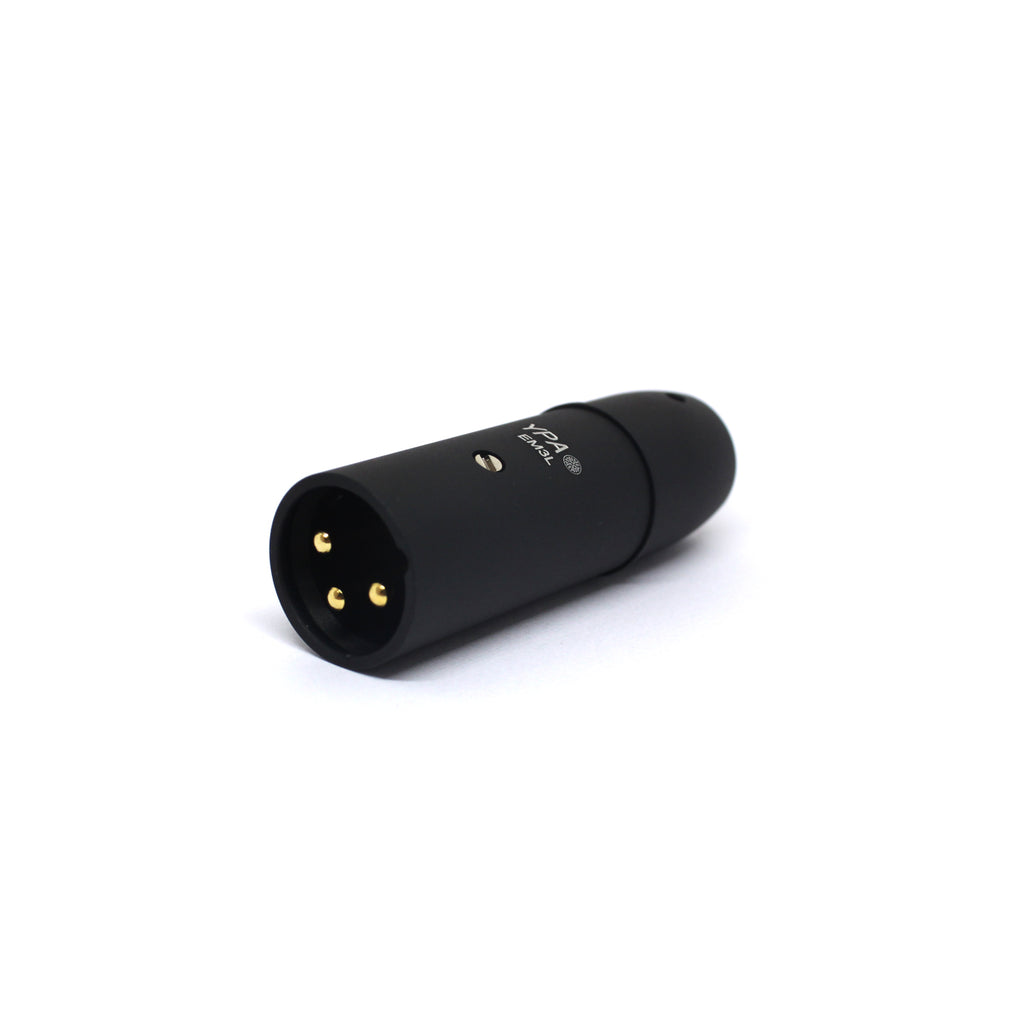

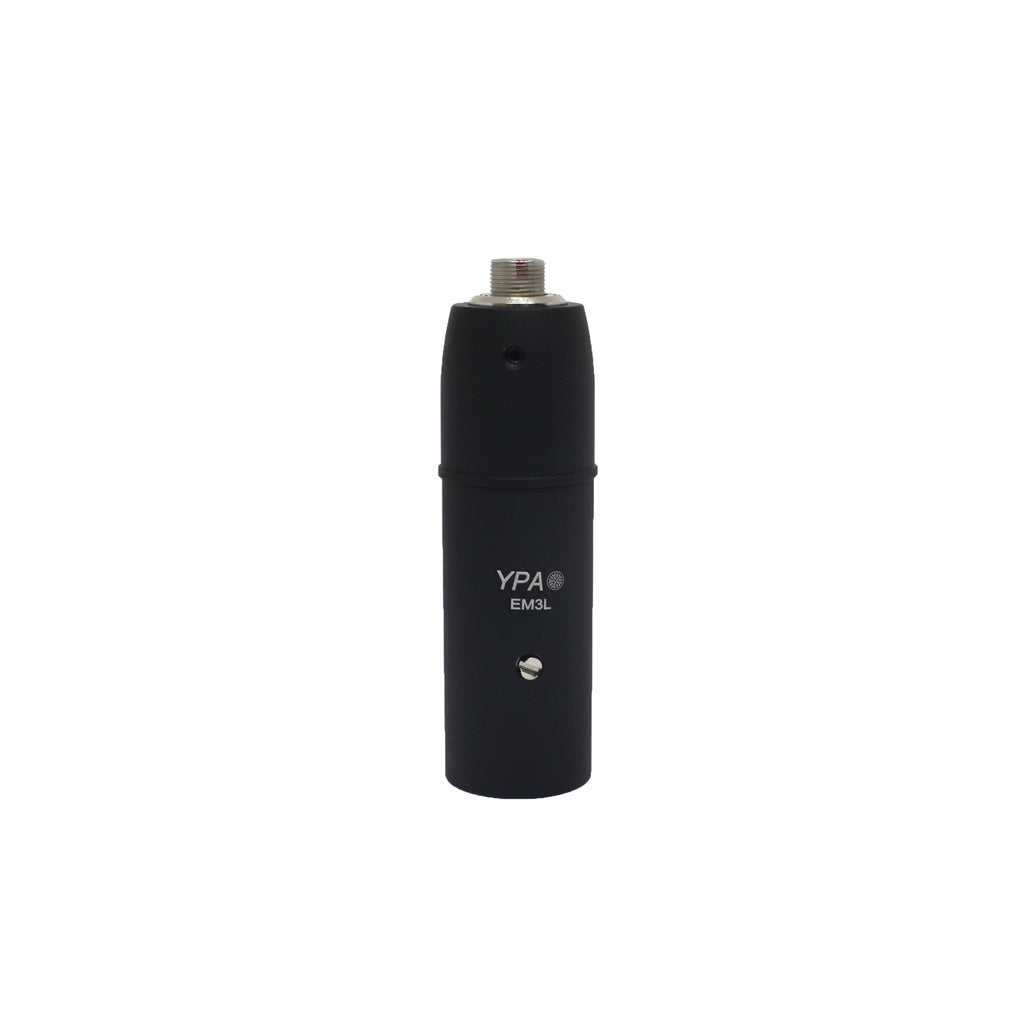

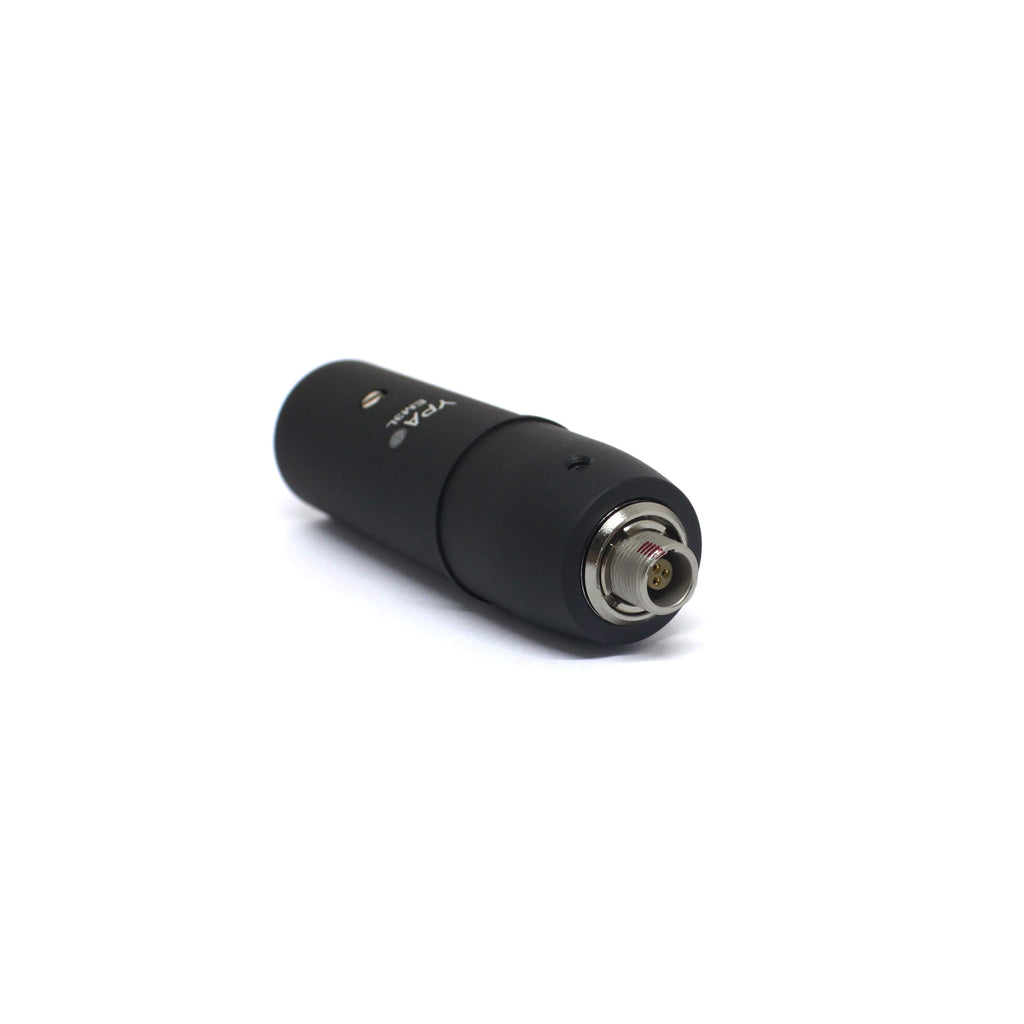

YPA EM3L Electret Phantom Power Adapter For Wireless Lavalier Headset Microphone (LEMO 3-pin to XLR)

  • Sale
  • $48.00
  • Regular price $78.00


  • The EM3L Electret Microphone Power Adapter from YPA Microphones allows hardwired use of a lavalier/headset mic by converting phantom 48V to 5.6V electret power, and outputs an electronically balanced signal with low impedance. This adapter is designed for use with Sennheiser 2000, 3000, 5000 series, Shure TL45, 46, 47, 48 lav microphones, TH53 headset mic with locking 3-pin connector and converts a Lemo 3-pin connector to a standard 3-pin XLR male connector.

    A small widget that allows hardwired use of lavalier mikes.

    Electret converter PCB connector, 48 V Phantom power Voltage converter and balancing amp for operating electret microphones on 48 V Phantom powered inputs.

    It converts Phantom 48 V to 5.6 V electret power and outputs the signal electronically balanced with low impedance. A range of models is available with standard sockets to fit the plugs of most popular radiomike systems in 2 or 3 wired configuration.

    The connector is designed for connecting LEMO 3-pin connector of microphones to XLR3M connections.

    LEMO 3-pin locking to XLR3M Adapter for use with Shure, Sennheiser, Dpa, Countryman's series of Miniature Microphones such as 2000, 3000, 5000 series, TL45, 46, 47, 48, TH53 lavaliver headset earset microphones

    Microphones To Recorder, Mixer, PA, Sound Device, XLR socket and so on which offer 48V phantom power

  • Adapter Type Converts phantom 48 V to electret 5.6 V power
    Connectors LEMO 3-pin Locking connector to 3-pin XLR male
    Length 2.3" (59 mm) approx.
    Diameter Adapter: 0.75" (19 mm) approx.

    Microdot connector: 0.27" (7 mm)
    Weight 1.1 oz (32 g) approx.
  • in original box
    1* YPA EM3L adapter
    1* Protective nets
    1* Carry Case
    Limited 1-Year Warranty
